Remove/install oil cooler - AR32.50-P-0020LF
MODEL 217, 222
with CODE 487 (Active Body Control (ABC))
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on fitting hydraulic lines and hoses | AH32.50-P-0001-02A | ||
| Notes on Active Body Control suspension | AH32.50-P-0001-01LF | ||
| Remove/install | |||
| 1 | Remove front bumper. | MODEL 217 with CODE 487 (Active Body Control (ABC)) |
AR88.20-P-2000LC |
| MODEL 222 with CODE 487 (Active Body Control (ABC)) |
AR88.20-P-2000LF | ||

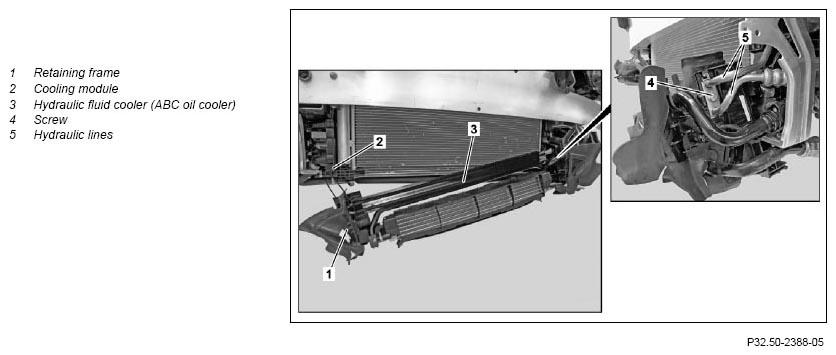

| 2 | Unclip retaining frame (1) with engine oil cooler and hydraulic fluid cooler (3) from cooling module (2) | ||
| 3 | Secure retaining frame (1) against falling down | ||
| 4 | Remove screw/bolt (4) and remove retaining plate | *BA32.50-P-1006-03B | |
| 5 | Detach hydraulic lines (5) and seal with stop plugs | Figure | |
| 6 | Remove hydraulic fluid cooler (3) from retaining frame (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Fill and bleed ABC system | AR32.50-P-0021SX |
ACTIVE BODY CONTROL
| Number | Designation | MODEL 217 | MODEL 222 | ||
|---|---|---|---|---|---|
| BA32.50-P-1006-03B | Screw/bolt, high-pressure line mounting plate to oil cooler | M6 | Nm | 8 | 8 |
