Remove/Install Trim Strip On Dashboard - AR68.10-P-1180CYA
MODEL 204.9 as of model year 2013
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | ||

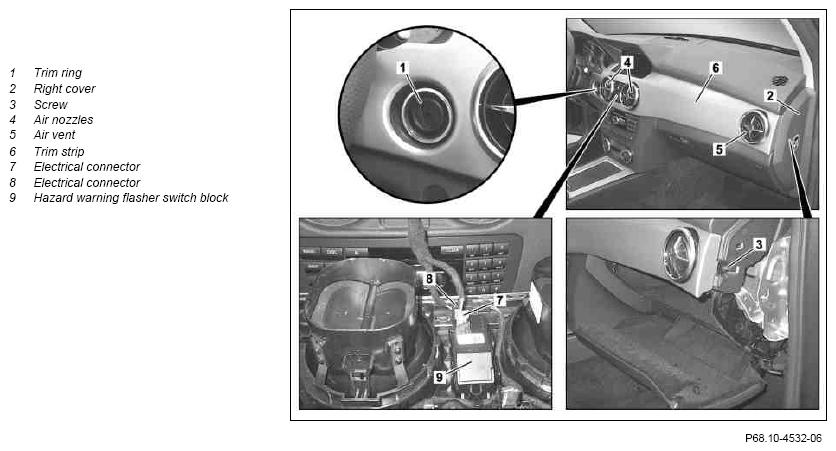

| 2 | Unscrew trim ring (1) from electronic ignition lock | Fig 4 | |
| 3 | Open glove box and unclip right cover (2) | Figure | |
| 4 | Unscrew bolt (3) | ||
| 5 | Remove side air vent (5) | When replacing trim strip (6) | |
| AR83.10-P-4740W | |||
| 6 | Remove center air vent (4) | When replacing trim strip (6) | |
| AR83.10-P-4503W | |||
| 7 | Unclip trim strip (6) and remove until electrical connectors (7, 8) are accessible | Unclip carefully and remove. Otherwise the selector lever on the steering wheel can be damaged. |
|
| Figure | |||
| 8 | Disconnect electrical connector (7) | ||
| 9 | Disconnect electrical connector (8) | MODEL 204.9 as of model year 2013 with CODE 877 (ambient lighting) |
|
| 10 | Unclip hazard warning flasher switch block (9) | When replacing trim strip (6) | |

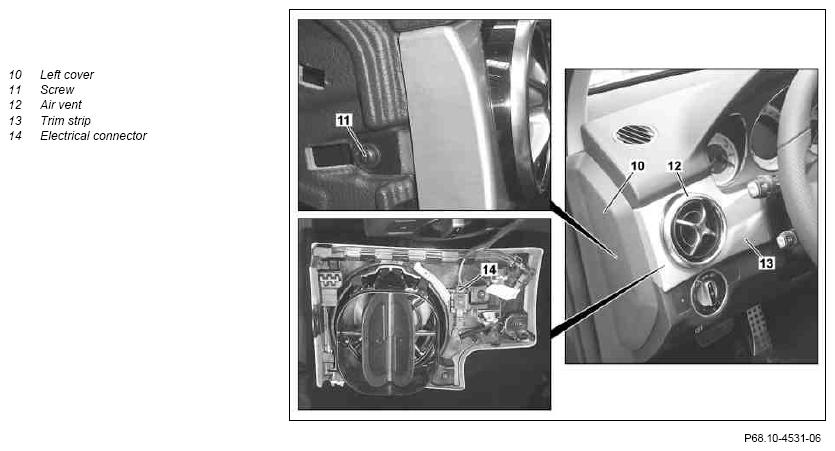

| 11 | Remove side air vent (12) | When replacing trim strip (13) | |
| 12 | Unclip left cover (10) | Figure | |
| 13 | Remove bolt (11) | ||
| 14 | Unclip trim strip (13) and remove until electrical connector (14) is accessible | Figure | |
| 15 | Disconnect electrical connector (14) | MODEL 204.9 as of model year 2013 with CODE 877 (ambient lighting) |
|
| 16 | Install in the reverse order |
