Remove/install side air vent - AR83.10-P-4740W

MODEL 204.9 as of model year 2013

MODEL 172.4

Shown on model 172.4

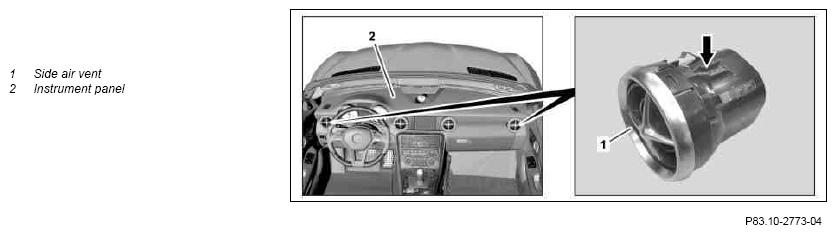

Fig 1: Identifying Side Air Vent Remove/Install Components - Shown On Model 172.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust the steering column backwards and downwards into its final position	When removing side air vent (1) on driver side.
2	Insert extraction hook into cutout (arrow) at top to side air vent (1) and pull side air vent (1) out of instrument panel (2)	Ensure that side air vent (1) is seated correctly in instrument panel (2).
		Extraction hook	Figure
3	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
