Remove and install center air vent - AR83.10-P-4503W

MODEL 172.4

MODEL 204.9 as of model year 2013

Shown on model 172.4

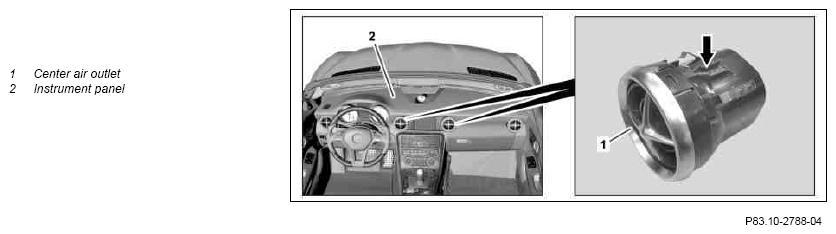

Fig 1: Identifying Center Air Vent Remove/Install Components - Shown On Model 172.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Insert extraction hook into cutout (arrow) at top to center air vent (1) and pull center air vent (1) out of instrument panel (2)	Ensure that center air vent (1) is seated correctly in instrument panel (2).
		Extraction hook	Figure
2	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
