Remove/install upper control arm - AR33.20-P-0500GQ

MODEL 166

MODIFICATION NOTES

20.2.12

Value changed: Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle

BA33.20-P-1001-01R

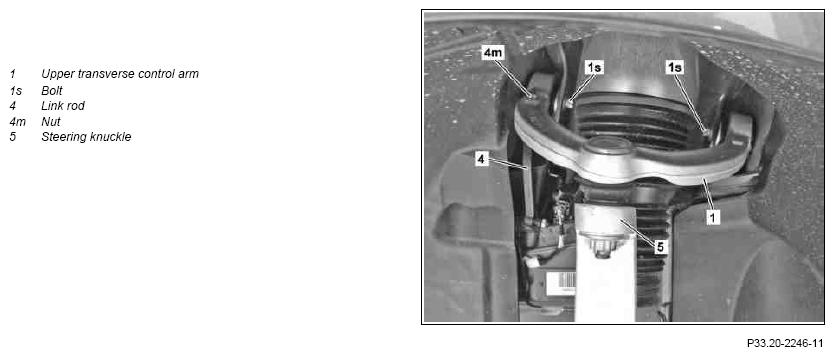

Fig 1: Identifying Upper Control Arm Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

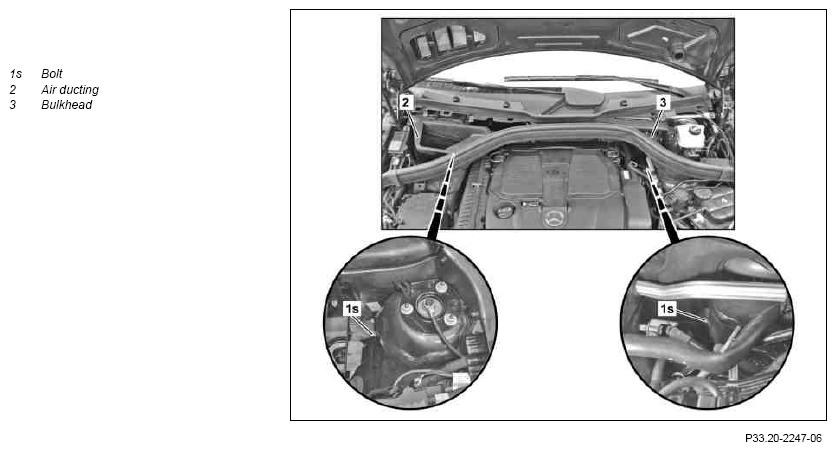

Fig 2: Identifying Upper Control Arm Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Open engine hood and raise to vertical position		AR88.40-P-1000GQ
2	Raise vehicle using vehicle lift until the wheels are clear of the ground		AR00.60-P-1000GZ
3	Check follower joint		AR33.20-P-0426GZ
3	Check follower joint	If the upper ball joint is defective, replace the upper transverse control arm (1).	AR33.20-P-0426GZ
4	Remove cover over suspension strut tower
5.1	Remove air ducting (2)	When removing upper transverse control arm (1) on right side
5.2	Remove section of the bulkhead (3)	When removing upper transverse control arm (1) on left side
6.1	Detach front wheel and tire assembly	MODEL 166 without CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))
	Detach front wheel and tire assembly		AP40.10-P-4050EW
6.2	Remove suspension strut	MODEL 166 with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))
6.2	Remove suspension strut		AR32.25-P-1017GQ
7	Remove fender liner front section in front fender		AR88.10-P-1310GQ
8	Unscrew nut (4m) and detach the bracket of the link rod (4) of upper transverse control arm (1)	If installed
9	Detach steering knuckle (5) of upper transverse control arm (1)	MODEL 166 without CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))
9		Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	*BA33.20-P-1001-01R
10	Remove bolts (1s) and remove upper transverse control arm (1)	Helper required.
10		Self-locking nut of upper wishbone on front end	*BA33.20-P-1002-01R
11	Install in the reverse order

WHEEL CONTROL, HUB

Number	Designation			MODEL 166
BA33.20-P-1001-01R	Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	Stage 1	Nm	100
BA33.20-P-1001-01R		Stage 2	∠°	45

WHEEL CONTROL, HUB

Number	Designation			MODEL 166
BA33.20-P-1002-01R	Self-locking nut of upper wishbone on front end	Stage 1	Nm	50
BA33.20-P-1002-01R	Self-locking nut of upper wishbone on front end	Stage 2	∠°	90
