Remove/install fender liner front section in front fender - AR88.10-P-1310GQ

MODEL 166

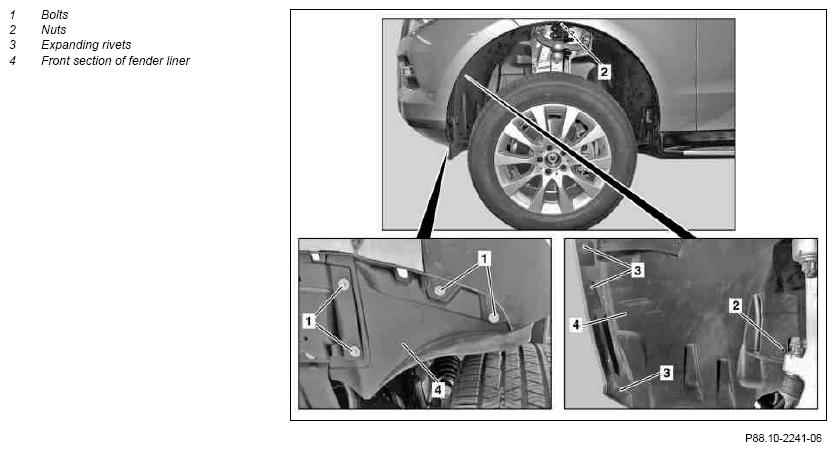

Fig 1: Identifying Fender Liner Front Section Remove/Install Components (Front Fender)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift vehicle on vehicle lift.
2	Remove bolts (1)
3	Unscrew nuts (2)
4	Remove expansion rivets (3)
5	Slightly lift rear section of fender liner in fender	Lift rear section of fender liner at top overlap with long wedge until front section of fender liner (4) can be removed from fender.
		Long wedge	Fig 2
6	Remove front fender liner section (4) from fender
7	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
