Remove/install the suspension strut - AR32.25-P-1017GQ

MODEL 166

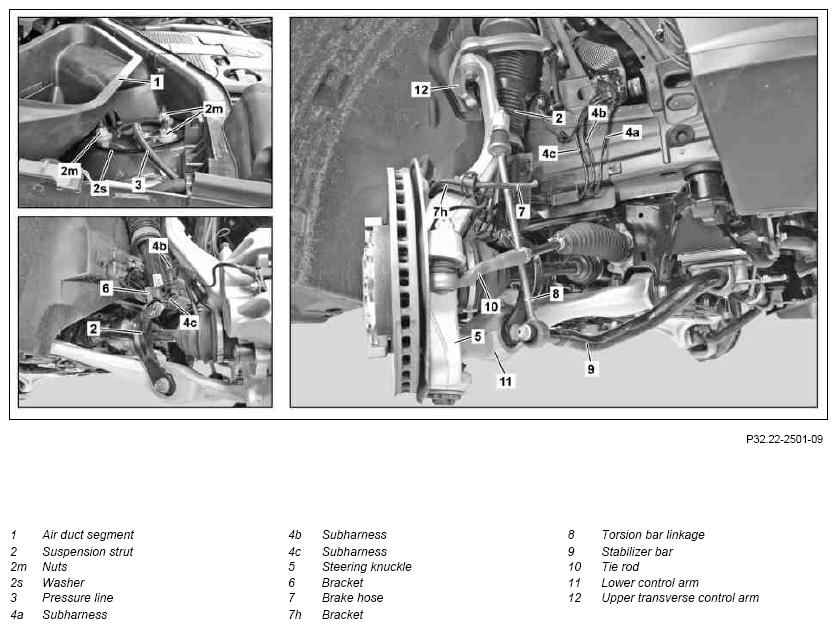

Fig 1: Identifying Suspension Strut Remove/Install Components
G09982214DANGERDANGERNOTESIMPORTANTIMPORTANTREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSNOTESTORQUE SPECIFICATIONSPECIAL TOOLSPECIAL TOOLTORQUE SPECIFICATIONREFER TO MAINTENANCEINSTALLATION NOTESINSTALLATION NOTESIMPORTANTIMPORTANTIMPORTANTTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONTORQUE SPECIFICATIONNOTESINSTALLATION IMPORTANTNOTESIMPORTANTINSPECTCourtesy of MERCEDES-BENZ USA
DANGER Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating range of the mechanism when moving components. AS00.00-Z-0009-01A
DANGER Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. AS00.00-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
IMPORTANT Notes on AIRmatic   AH32.22-P-1000-02GZ
REMOVINGINSTALLING Remove/install
1 Open engine hood and raise to vertical position   AR88.40-P-1000GQ
2 Raise vehicle using vehicle lift until the wheels are clear of the ground   AR00.60-P-1000GZ
3 Empty AIRmatic using diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS MODEL 166
with CODE 489 (AIRMATIC)
NOTES
Empty and fill the AIRmatic as per the specifications; the complete wheels must not be touching the ground.
The air springs can otherwise be damaged and fail later.
AD00.00-P-2000-04A
4 Switch off ignition
5 Remove cover over corresponding suspension strut tower
6 Remove air duct segment (1) When removing right suspension strut (2).
7 Detach pressure line (3) and seal off connections with blind plugs MODEL 166
with CODE 489 (AIRMATIC)

Leakage detection spray for USA *BR00.45-Z-1004-03A
TORQUE SPECIFICATION Air suspension pressure line to front air suspension *BA32.22-P-1005-03B
Leak detection spray *BR00.45-Z-1002-03A
SPECIAL TOOL Socket wrench bit Figure
SPECIAL TOOL Knife
Check pressure line (3) and pressure line connections for signs of damage and if necessary:
Repair AIRmatic pressure line connection
Figure
AR32.22-P-2001-02GZ
9 Unscrew nuts (2m) TORQUE SPECIFICATION Nut for shock absorber on front end *BA32.25-P-1001-01O
10 Remove washer (2s) MODEL 166
with CODE 430 (On & off-road package)

11 Secure vehicle on vehicle lift   AR00.60-P-0100GZ
12 Detach front wheel and tire assembly
REFER TO MAINTENANCE AP40.10-P-4050EW
13 Remove front section of fender liner in front fender MODEL 166
with CODE 489 (AIRMATIC)
AR88.10-P-1310GQ
14 Detach subharness (4a) from all holders on longitudinal member, suspension strut (2) and steering knuckle (5) MODEL 166
with CODE 489 (AIRMATIC)
INSTALLATION NOTES
Check routing is correct, free of tension and chafing.
Otherwise damage can occur.

15 Release and disconnect electrical connector of subharness (4a) from bracket MODEL 166
with CODE 489 (AIRMATIC)

16 Detach subharnesses (4b, 4c) from all holders on longitudinal member, suspension strut (2) and steering knuckle (5) INSTALLATION NOTES
Check routing is correct, free of tension and chafing.
Otherwise damage can occur.
IMPORTANT The subharness (4b) is only present on the right side of the vehicle.

17 Remove bracket (6)
18 Remove brake hose (7) from bracket (7h)
IMPORTANT Notes on installing brake hoses AH42.10-P-9406-01GZ
19 Detach torsion bar linkage (8) from stabilizer bar (9) IMPORTANT Carefully detach torsion bar linkage (8), stabilizer bar (9) is under tension!
TORQUE SPECIFICATION
MODEL 166
with CODE 468 (Active driving stability (stability))
MODEL 166
without CODE 468 (Active driving stability (stability))
*BA32.20-P-1002-02Q
20 Remove tie rod (10) from steering knuckle (5) TORQUE SPECIFICATION Self-locking nut, tie rod to steering knuckle *BA46.40-P-1002-01K
21 Support lower transverse control arm (11) Transmission jack gotis://H_00.10_01.  0
22 Detach steering knuckle (5) from upper transverse control arm (12) TORQUE SPECIFICATION Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle *BA33.20-P-1001-01R
23 Detach suspension strut (2) from lower control arm (11) TORQUE SPECIFICATION Self-locking nut, shock absorber to wishbone *BA32.25-P-1002-01O
24 Lever front axle shaft out of front axle transmission and remove NOTES
Do not damage the boots and protective ring of the front axle shaft or the radial shaft sealing ring in the front axle transmission. The damaged component must be replaced otherwise.
INSTALLATION IMPORTANT Retaining ring must be replaced.

25 Push lower control arm (11) down and remove suspension strut (2) NOTES
Do not damage subharnesses (4a, 4b, 4c) or boots for front axle shaft or suspension strut (2).
Otherwise, the function is not assured.
IMPORTANT Helper required.

26 Install in the reverse order
INSPECT Check
27 Check AIRmatic for leaks MODEL 166
with CODE 489 (AIRMATIC)
AR32.22-P-8100GZ
FRONT AXLE TORSION BAR

Number Designation MODEL 166 without CODE 468 (Active driving stability (stability)) MODEL 166 with CODE 468 (Active driving stability (stability))
BA32.20-P-1002-02Q Bolt, link rod to stabilizer bar Stage 1 Nm 80 80
Stage 2 ∠° 90 90
AIR SUSPENSION

Number Designation MODEL 166
BA32.22-P-1005-03B Air suspension pressure line to front air suspension Nm 5
FRONT AXLE SHOCK ABSORBER

Number Designation MODEL 166
BA32.25-P-1001-01O Nut for shock absorber on front end Nm 60
FRONT AXLE SHOCK ABSORBER

Number Designation MODEL 166
BA32.25-P-1002-01O Self-locking nut, shock absorber to wishbone Stage 1 Nm 100
Stage 2 ∠° 180
WHEEL CONTROL, HUB

Number Designation MODEL 166
BA33.20-P-1001-01R Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle Stage 1 Nm 100
Stage 2 ∠° 45
TIE ROD

Number Designation MODEL 166
BA46.40-P-1002-01K Self-locking nut, tie rod to steering knuckle Stage 1 Nm 90
Stage 2 ∠° 90
Fig 2: Identifying Socket Wrench Bit (211 589 00 09 00)
G09982215Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Knife (000 589 12 28 00)
G09982216Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-03A Leak detection spray Christof Fischer GmbH,
Augsburger Strasse 289-293,
70327 Stuttgart
Germany
Tel. +49 711 30502-0
Fax +49 711 30502-10
www.kaeltefischer.de
BR00.45-Z-1004-03A Leakage detection spray for USA -
