Remove/install brake shoes of parking brake - AR42.20-P-0530GW

MODEL 463 as of model year 2013/model refinement package 2012

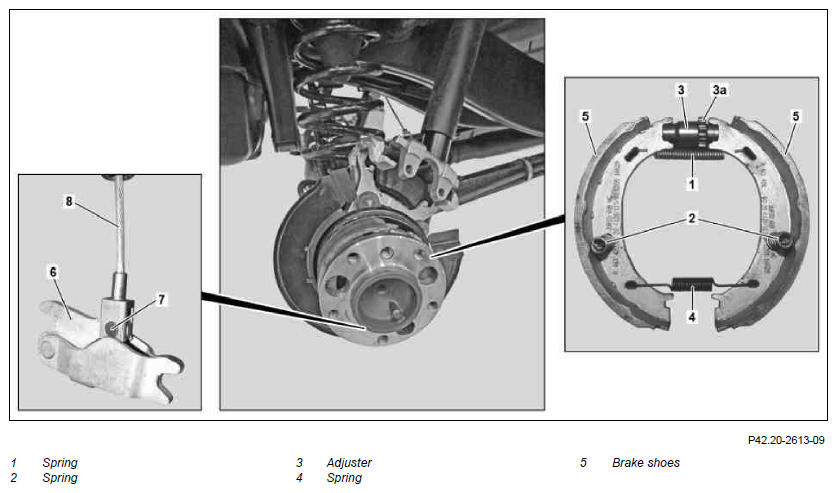

Fig 1: Parking Brake Shoes Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear axle brake disk		AR42.10-P-0240GW
2	Remove spring (1)	Check spring (1) is correctly seated.
			Figure
3	Remove springs (2),		Figure
4	Remove brake adjuster (3)
5	Remove spring (4)	Check spring (4) is correctly seated.
6	Remove brake shoes (5)
7	Install in the reverse order
8	Adjust parking brake		AR42.20-P-0540GW
