Remove/install belt pulley/vibration damper - AR03.30-P-1600SX
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2013 Mercedes-Benz S65, 2013 Mercedes-Benz S63, 2013 Mercedes-Benz S600, 2013 Mercedes-Benz S550, and 2013 Mercedes-Benz S350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 273 in MODEL 216
ENGINES 272, 273 in MODEL 221
MODIFICATION NOTES
| 27.2.12 | Reference to the altered version of the poly-V belt, added | Operation step 3.1, 3.2 | BT13.20-P-1000-01SXH |
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove engine intake air duct and front engine cover | See Remove air filter housing. | AR09.10-P-1150SX |
| 3.1 | Remove poly-V belt | Except model 221.095/195 with a twin belt drive | AR13.20-P-0001SX |
| Version of the poly-V belt altered | Model 221.095/195 | BT13.20-P-1000-01SXH | |
| 3.2 | Remove both V-belts | Model 221.095/195 with twin belt drive | AR13.22-P-1202SXH |
| Version of the poly-V belt altered | Model 221.095/195 | BT13.20-P-1000-01SXH | |

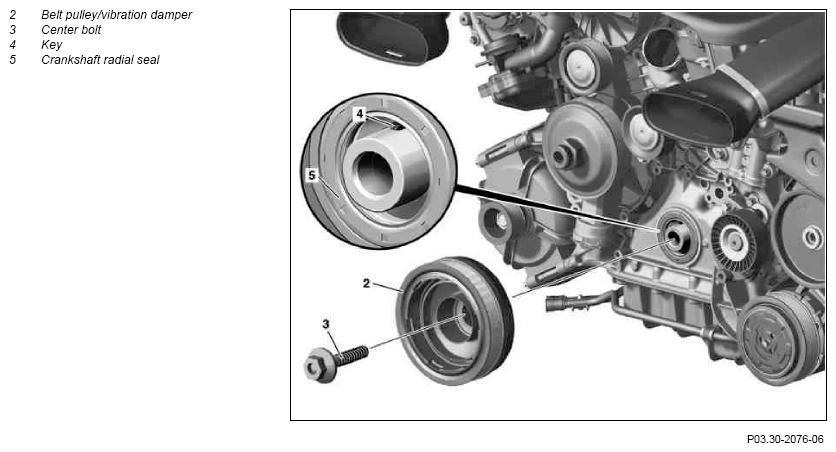

| 4 | Place engine at center bolt (3) for crankshaft at TDC | ||
| 5 | Install retaining lock for crankshaft/starter ring gear | Except model 221.095/195 | AR03.30-P-5000SX |
| 6.1 | Remove center bolt (3) | Except model 221.095/195 |
|
| *BA03.30-P-1001-01M | |||
| 6.2 | Remove center bolt (3); to do this counterhold belt pulley/vibration damper (2) with a counterholder | Model 221.095/195 |
|
| Fig 3 | |||
| Fig 2 | |||
| 7 | Detach belt pulley/vibration damper (2) from crankshaft | ||
| Checking | |||
| 8 | Check contact surface of crankshaft radial sealing ring (5) at hub of belt pulley/vibration damper (2) | ||
| 9 | Replace front crankshaft radial seal (5) | When replacing belt pulley/vibration damper (2) or in the event of leaks on crankshaft radial sealing ring (5). | AR03.20-P-3000SX |
| 10 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Conduct engine test run and check engine for leaks |
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BA03.30-P-1001-01M | Center bolt for belt pulley on crankshaft | Stage 1 | Nm | 200 | 200 |
| Stage 2 | ∠° | 90 | 90 | ||
