Remove/install propeller shaft - AR41.10-P-0050CW

MODEL 204, 207

MODIFICATION NOTES

25.6.10 Value modified: Self-locking nut, flexible coupling to transmission and front propeller shaft, M12   BA41.10-P-1001-01I
25.6.10 Value changed: Self-locking nut, flex disk to rear propeller shaft or rear axle differential M12   BA41.10-P-1002-01I

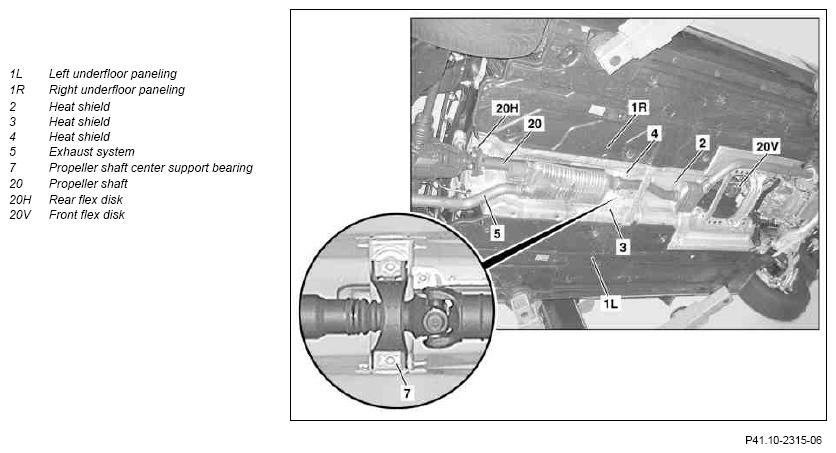

Fig 1: Identifying Propeller Shaft Remove/Install Components
G10000164Courtesy of MERCEDES-BENZ TRUCK CO., INC.
REMOVINGINSTALLING Remove/install
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Shift transmission into neutral or idle position
2 Remove lower engine compartment paneling and bottom sections of soundproofing MODEL 204.0 with ENGINE 642, 646, 651
MODEL 204.2 with ENGINE 642, 646, 651
MODEL 204.3 with ENGINE 651
MODEL 207 with ENGINE 642, 651
AR94.30-P-5300EW
Model 204, 207 with gasoline engine except model 204.9 AR61.20-P-1105EW
MODEL 204.9 AR61.20-P-1105CY
3 Detach underfloor paneling (1L, 1R) at heat shields (2, 3, 4) MODEL 204, 207
MODEL 207 AR61.30-P-1001EC
4 Remove rear reinforcement brace from underfloor Vehicles with 4MATIC and vehicles with engine 156
TORQUE SPECIFICATION
MODEL 204 with ENGINE 156
MODEL 204 with TRANSMISSION 722.96
*BA61.10-P-1003-01H
5 Remove rear engine crossmember MODEL 204 with ENGINE 156
MODEL 204 with ENGINE 272, 276, 642
MODEL 207

NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
MODEL 204 with ENGINE 272, 276, 642
MODEL 207 with ENGINE 271, 272, 273, 276, 278, 642, 651
AR22.10-P-1180CW
MODEL 204 with ENGINE 156 AR22.10-P-1180CMG
6 Detach heat shield (2, 3, 4) in area of propeller shaft center support bearing (7) and remove
7 Remove vibration damper from transfer case MODEL 204 with TRANSMISSION 722.96
TORQUE SPECIFICATION
MODEL 204 with TRANSMISSION 722.96
*BA28.10-P-1007-01E
8 Mark propeller shaft (20) IMPORTANT Apply color markings identifying the position of the propeller shaft relative to the flanges on the transmission and differential, in order to be able to reproduce the plant installation position when installing.
9 Detach front flexible coupling (20V) from transmission and from propeller shaft (20)   AR41.10-P-0050-09TX
REFER TO SHOP-MADE TOOLS     WF58.50-P-4110-01A
IMPORTANT release the guide sleeves on
TORQUE SPECIFICATION Self-locking nut, flexible coupling to transmission or front propeller shaft *BA41.10-P-1001-01I
10 Detach rear flexible coupling (20H) from rear axle differential   AR41.10-P-0050-09TX
REFER TO SHOP-MADE TOOLS     WF58.50-P-4110-01A
IMPORTANT release the guide sleeves on
IMPORTANT Flexible coupling remains on propeller shaft.

TORQUE SPECIFICATION Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential *BA41.10-P-1002-01I
11.1 Unhook rear section of exhaust system (5) from exhaust rubber mounts, lower and prop up Model 204 with engine 272, 642 without 4MATIC, model 207
11.2 Completely remove exhaust system starting at flange connection between catalytic converter and center muffler or exhaust system Model 204 with engine 156, 272, 276 and 4MATIC
MODEL 204 with ENGINE 156, 272, 276 AR49.10-P-7100CW
12 Mark propeller shaft intermediate bearing (7) IMPORTANT Apply color markings identifying the position of the propeller shaft center support bearing relative to the vehicle underbody in order to reproduce the plant installation position when installing.
13 Remove bolts on propeller shaft center support bearing (7) INSTALLATION IMPORTANT The bolts should only be tightened when the propeller shaft (20) is securely attached to the transmission and rear axle differential.
TORQUE SPECIFICATION Bolt, propeller shaft center support bearing to frame floor assembly *BA41.40-P-1001-01F
14 Move out propeller shaft (20) to the rear
INSPECT Check
15 Check propeller shaft intermediate bearing (7) for wear and damage; replace if necessary   AR41.10-P-0100CW
16 Check centering sleeves for wear and replace if necessary   AR41.10-P-0200CW
17 Check flexible couplings (20H, 20V)
REFER TO MAINTENANCE   MODEL 204 AP41.10-P-4152CW
REFER TO MAINTENANCE   MODEL 207 AP41.10-P-4152EW
18 Install in the reverse order
PROPELLER SHAFT

Number Designation MODEL 204 MODEL 207
BA41.10-P-1001-01I Self-locking nut, flexible coupling to transmission or front propeller shaft M12 Nm 68 68
PROPELLER SHAFT

Number Designation MODEL 204 MODEL 207
BA41.10-P-1002-01I Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential M12 Nm 68 68
COMPLETE TRANSFER CASE

Number Designation Transmission 722.96
BA28.10-P-1007-01E Bolt, vibration damper to transfer case Nm 40
FRAME FLOOR ASSEMBLY

Number Designation MODEL 204
BA61.10-P-1003-01H Bolt, rear reinforcement brace to frame floor assembly Nm 24
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation MODEL 204 MODEL 207
BA41.40-P-1001-01F Bolt, propeller shaft center support bearing to frame floor assembly Self-tapping screw Nm 20 20
