Check propeller shaft flex disks for signs of damage and deformation - AP41.10-P-4152CW

MODEL 204

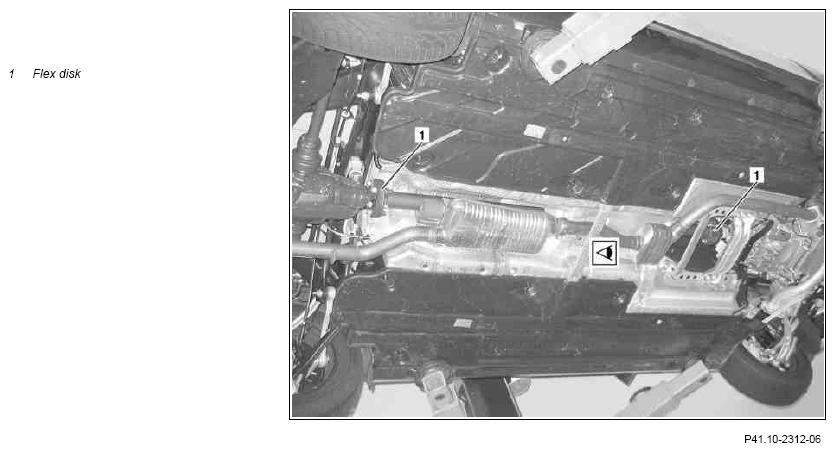

Fig 1: Checking Propeller Shaft Flex Disks For Signs Of Damage

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Check
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift
2	Check flexible couplings (1) for cracking, wear, damage and deformation	If cracking, wear, damage or deformation is present: ↓ Install new flexible coupling (1), subject to a separate repair order.
3	Lower vehicle
