Remove/install front brake control cable - AR42.20-P-0520CW

MODEL 204, 207

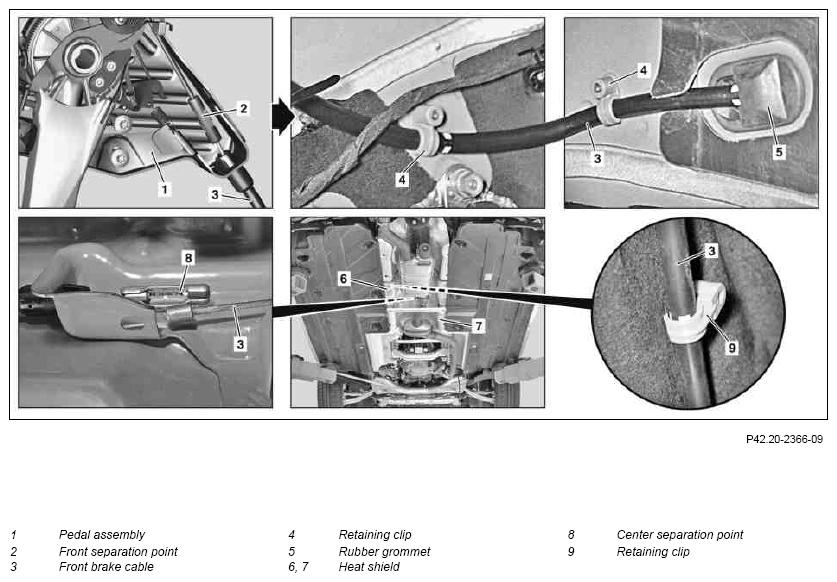

Fig 1: Identifying Front Brake Control Cable Remove/Install Components (1 Of 2)
G10000171Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Front Brake Control Cable Remove/Install Components (2 Of 2)
G10000172DANGERDANGERDANGERNOTESREMOVINGINSTALLINGNOTESSPECIAL TOOLSPECIAL TOOLINSTALLATION IMPORTANTTORQUE SPECIFICATIONSPECIAL TOOLTORQUE SPECIFICATIONIMPORTANTIMPORTANTINSTALLATION IMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
REMOVINGINSTALLING Remove/install
1 Remove lower instrument panel cover on driver side
2 Remove cover from pedal assembly (1)
3 Remove floor covering in driver footwell
4 Secure vehicle to prevent it rolling away and release parking brake
5 Press down front separation point (2) using assembly tool and unhook front brake cable (3) NOTES
Do not unhook the front brake cable (3) using pliers.
The rubber guard can otherwise be damaged.

SPECIAL TOOL Assembly tool Figure
6 Unhook front brake cable (3) from pedal assembly (1) SPECIAL TOOL Snap-release tool Figure
7 Remove retaining clips (4) in the driver footwell INSTALLATION IMPORTANT Install new retaining clips (4).
8 Pry rubber grommet (5) out of the propeller shaft tunnel
9 Remove lower engine compartment paneling or bottom sections of soundproofing MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276
MODEL 204.3 with ENGINE 156, 271, 274, 276
MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278
AR61.20-P-1105EW
MODEL 204.9 AR61.20-P-1105CY
MODEL 204.0 with ENGINE 642, 646, 651
MODEL 204.2 with ENGINE 642, 646, 651
MODEL 204.3 with ENGINE 651
MODEL 207 with ENGINE 642, 651
AR94.30-P-5300EW
10 Release underfloor paneling in area of rear reinforcement brace MODEL 204, 207
MODEL 207 AR61.30-P-1001EC
11 Remove rear reinforcement brace on frame floor assembly TORQUE SPECIFICATION Bolt, rear reinforcement brace to frame floor assembly *BA61.10-P-1003-01H
12 Remove heat shields (6, 7) in area of propeller shaft center support bearing
13 Unhook front brake cable (3) on center separation point (8)
14 Unhook front brake cable (3) from bracket on underbody SPECIAL TOOL Snap-release tool Figure
15 Unscrew front bracket of exhaust system MODEL 204, 207 with TRANSMISSION 722
TRANSMISSION 722 in MODEL 204 with ENGINE 156
TRANSMISSION 722 in MODEL 204 with ENGINE 271
TRANSMISSION 722 in MODEL 204 with ENGINE 272
TRANSMISSION 722 in MODEL 204 with ENGINE 274
TRANSMISSION 722 in MODEL 204 with ENGINE 276
TRANSMISSION 722 in MODEL 207 with ENGINE 271
TRANSMISSION 722 in MODEL 207 with ENGINE 272
TRANSMISSION 722 in MODEL 207 with ENGINE 273
TRANSMISSION 722 in MODEL 207 with ENGINE 276
TRANSMISSION 722 in MODEL 207 with ENGINE 278
AR49.10-P-7100CW
TRANSMISSION 722 in MODEL 204 with ENGINE 642
TRANSMISSION 722 in MODEL 204 with ENGINE 651
TRANSMISSION 722 in MODEL 207 with ENGINE 642
TRANSMISSION 722 in MODEL 207 with ENGINE 651
AR49.10-P-7100CWI
16 Remove bolts (27) and bracket (25) of diesel particulate filter MODEL 204 with ENGINE 642 with TRANSMISSION 722
TORQUE SPECIFICATION Bolt/nut, bracket of diesel particulate filter to lower diesel particulate filter *BA49.10-P-1027-01AC
17 Remove exhaust gas recirculation lines from catalytic converters MODEL 204 with ENGINE 272.982 with TRANSMISSION 722
MODEL 207 with ENGINE 272.982/984 with TRANSMISSION 722
AR49.10-P-7100CW
MODEL 204, 207 with ENGINE 276.9 with TRANSMISSION 722 AR14.20-P-1020FH
18.1 Detach clamp for diesel particulate filter on connecting pipe MODEL 204, 207 with ENGINE 642, 651
AR49.10-P-7100CWI
18.2 Detach catalytic converter from exhaust manifold MODEL 204 with ENGINE 272 with TRANSMISSION 722
MODEL 207 with ENGINE 272 with TRANSMISSION 722
MODEL 207 with ENGINE 273 with TRANSMISSION 722
MODEL 207 with ENGINE 276.9 with TRANSMISSION 722

  AR49.10-P-7100CW
19 Unclip the oxygen sensor's electrical feed lines from retaining clamps MODEL 204 with ENGINE 272 with TRANSMISSION 722
MODEL 207 with ENGINE 272 with TRANSMISSION 722
MODEL 207 with ENGINE 273 with TRANSMISSION 722
MODEL 207 with ENGINE 278 with TRANSMISSION 722

20 Remove shift rod on range selector lever of automatic transmission MODEL 204, 207 with TRANSMISSION 722.6/9
MODEL 204.0/2/3 with TRANSMISSION 722.6
up to model year 2012/AEJ11MODEL 207 with TRANSMISSION 722.6
AR27.10-P-0500CW
MODEL 204 with TRANSMISSION 722.9 (except 722.96/997)
MODEL 207 with TRANSMISSION 722.9 (except 722.96)
AR27.10-P-0500CV
MODEL 204.04/24/34 with TRANSMISSION 722.997 AR27.10-P-0500CWA
MODEL 204.0/2/9 with TRANSMISSION 722.96
MODEL 207.3 with TRANSMISSION 722.96
AR27.10-P-0500CWX
21 Support automatic transmission and secure to prevent it from falling down MODEL 204, 207 with TRANSMISSION 722
22.1 Remove engine crossmember with rear engine mount MODEL 204 (except 204.9), 207 with TRANSMISSION 722
MODEL 204 (except 204.9) with ENGINE 272 with TRANSMISSION 722
MODEL 204 (except 204.9) with ENGINE 274 with TRANSMISSION 722
MODEL 204 (except 204.9) with ENGINE 276 with TRANSMISSION 722
MODEL 204 (except 204.9) with ENGINE 642 with TRANSMISSION 722
MODEL 204 (except 204.9) with ENGINE 646 with TRANSMISSION 722
MODEL 204 (except 204.9) with ENGINE 651 with TRANSMISSION 722
MODEL 204 with ENGINE 271 with TRANSMISSION 722
MODEL 207 with ENGINE 271 with TRANSMISSION 722
MODEL 207 with ENGINE 272 with TRANSMISSION 722
MODEL 207 with ENGINE 273 with TRANSMISSION 722
MODEL 207 with ENGINE 274 with TRANSMISSION 722
MODEL 207 with ENGINE 276 with TRANSMISSION 722
MODEL 207 with ENGINE 278 with TRANSMISSION 722
MODEL 207 with ENGINE 642 with TRANSMISSION 722
MODEL 207 with ENGINE 651 with TRANSMISSION 722
AR22.10-P-1180CW
MODEL 204 with ENGINE 156 with TRANSMISSION 722 AR22.10-P-1180CMG
22.2 Detach engine crossmember from frame floor assembly MODEL 204.9 with ENGINE 272 with TRANSMISSION 722
MODEL 204.9 with ENGINE 274 with TRANSMISSION 722
MODEL 204.9 with ENGINE 276 with TRANSMISSION 722
MODEL 204.9 with ENGINE 642 with TRANSMISSION 722
MODEL 204.9 with ENGINE 651 with TRANSMISSION 722

  AR22.10-P-1180CW
23 Detach propeller shaft from transmission MODEL 204, 207 with TRANSMISSION 722 AR41.10-P-0050CW
24 Lower the automatic transmission MODEL 204, 207 with TRANSMISSION 722
IMPORTANT Lower carefully and only lower far enough that no damage is done, e.g. to the partition wall between the wheel wells or hot film mass air flow sensor!

25 Remove retaining clips (9) on propeller shaft tunnel IMPORTANT Destroy retaining clips (9) with difficult access.
INSTALLATION IMPORTANT Install new retaining clips (9).

26 Pull out front brake cable (3) to the rear
27 Install in the reverse order
28 Adjust parking brake   AR42.20-P-0540CW
AR42.20-P-0540EW
EXHAUST SYSTEM

Number Designation ENGINE 642, 646, 651 in MODEL 204
BA49.10-P-1027-01AC Bolt/nut, bracket of diesel particulate filter to lower diesel particulate filter Nm 20
FRAME FLOOR ASSEMBLY

Number Designation MODEL 204 MODEL 207.3
BA61.10-P-1003-01H Bolt, rear reinforcement brace to frame floor assembly Nm 24 24
FRAME FLOOR ASSEMBLY

Number Designation MODEL 207.4
BA61.10-P-1003-01H Bolt, rear reinforcement brace to frame floor assembly Nm 24
Fig 3: Identifying Snap-Release Tool (129 589 11 63 00)
G10000173Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Tool (204 589 00 16 00)
G10000174Courtesy of MERCEDES-BENZ USA
