Check Wiper Arms And Adjust - AR82.30-P-6000GZ

MODEL 164, 166

Shown using model 251 as an example

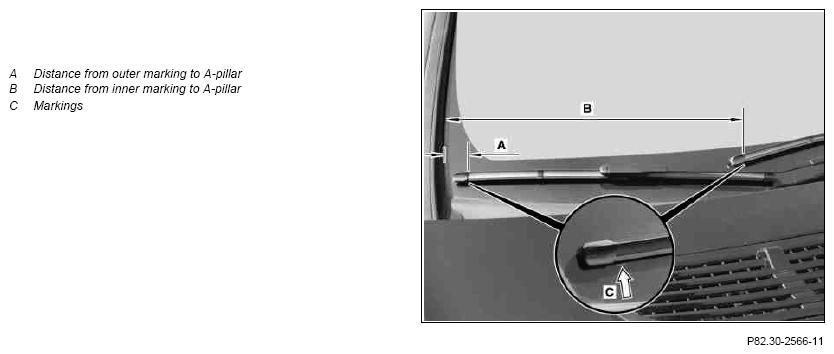

Fig 1: Identifying Distance From Outer Marking To A-Pillar

Courtesy of MERCEDES-BENZ USA

Shown using model 251 as an example

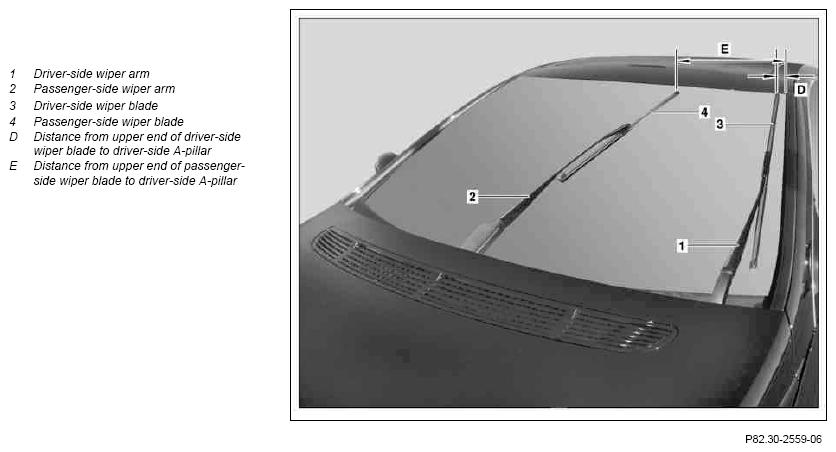

Fig 2: Identifying Distance From Upper End Of Driver-Side Wiper Blade To Driver-Side A-Pillar

Courtesy of MERCEDES-BENZ USA

	Check
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with CODE 889 (Keyless-Go): Press Keyless-Go start and stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Check wiper blades for wear and damage, replace if necessary	Make sure when working on lifted wiper arms that they do not fall onto the windshield. The windshield will otherwise be damaged.
3	Check position of wiper arms in parked position using marks (arrow C) at windshield	The wiper blade ends must lie on the markings (arrow C) and may not be offset by more than 10 mm upwards or downwards. The distance from the outer marking to the A-pillar (A) is approx. 60 mm, the distance from the inner marking to the A-pillar (B) is approx. 510 mm. Excessive deviations may be caused by a damaged wiper linkage, incorrect positioning of the wiper arms on the linkage pins, or bent wiper arms. If damage is present: ↓ Replace wiper system.
			AR82.30-P-6400GZ
		Replace wiper arm.
			AR82.30-P-6100GZ
4	Move wiper system from parked position	Switch on ignition and windshield wipers. If wiper arms are near reversing position, switch off ignition and windshield wiper. On vehicles with CODE 889 (Keyless-Go): Press Keyless-Go start and stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
5	Position the driver-side wiper arm (1) and passenger-side wiper arm (2) by hand in the reversing position	The reversing position of the driver-side wiper arm (1) corresponds to the distance between driver-side wiper blade and A-pillar (D) of approx. 30 mm. The reversing position of the passenger-side wiper arm (2) corresponds to the distance between passenger-side wiper blade to A-pillar (E) of approx. 460 mm.
6	Remove wiper blades	Do not adjust the driver-side wiper arm (1) and passenger-side wiper arm (2).
7	Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
	Measure
8	Measure angle of incidence of wiper arms to windshield, record this and compare test value with adjustment value	MODEL 164, 166	AR82.30-P-6000-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01GZ
		When changing from reversing position to parked position, make sure that driver-side wiper arm (1) and passenger-side wiper arm (2) do not make direct contact with windshield. Otherwise this will be scratched. Cover driver-side wiper arm (1) and passenger-side wiper arm (2) with appropriate means (scratch protection). Compare check values with adjustment values and select correct adjustment measure.
		MODEL 166.### 2# MODEL 164.1##/8## 2# MODEL 164.1##/8## 1# MODEL 166.### 1#	*BE82.30-P-1004-01J
		MODEL 166.### 2# MODEL 164.1##/8## 2# MODEL 164.1##/8## 1# MODEL 166.### 1#	*BE82.30-P-1003-01J
		MODEL 166.### 2# MODEL 164.1##/8## 1# MODEL 164.1##/8## 2# MODEL 166.### 1#	*BE82.30-P-1001-01J
		MODEL 166.### 2# MODEL 166.### 1# MODEL 164.1##/8## 2# MODEL 164.1##/8## 1#	*BE82.30-P-1002-01J
		Adapter	Fig 4
		Adjusting tool set	Fig 3
	Adjust
9.1	Adjust angle of incidence of wiper arms in parked position	In the event that the test values deviate from the tolerance range in reversing position or in parked position and reversing position.
	Notes on wiper arm adjustment		AH82.30-P-0001-01GZ
		MODEL 164, 166	AR82.30-P-6100-01GZ
		MODEL 166.### 1# MODEL 166.### 2# MODEL 164.1##/8## 1# MODEL 164.1##/8## 2#	*BE82.30-P-1004-01J
		MODEL 166.### 1# MODEL 164.1##/8## 1# MODEL 166.### 2# MODEL 164.1##/8## 2#	*BE82.30-P-1003-01J
		MODEL 164.1##/8## 1# MODEL 166.### 2# MODEL 164.1##/8## 2# MODEL 166.### 1#	*BE82.30-P-1001-01J
		MODEL 166.### 2# MODEL 164.1##/8## 1# MODEL 166.### 1# MODEL 164.1##/8## 2#	*BE82.30-P-1002-01J
		Adapter	Fig 4
		Adjusting tool set	Fig 3
9.2	Adjusting wiper system	In the event that the check values of both wiper arms (1, 2) deviate from the tolerance range in parked position.
	Notes on wiper arm adjustment		AH82.30-P-0001-01GZ
			AR82.30-P-6400-01GZ
		MODEL 166.### 2# MODEL 164.1##/8## 2# MODEL 166.### 1# MODEL 164.1##/8## 1#	*BE82.30-P-1004-01J
		MODEL 164.1##/8## 1# MODEL 166.### 1# MODEL 166.### 2# MODEL 164.1##/8## 2#	*BE82.30-P-1003-01J
		Adapter	Fig 4
		Adjusting tool set	Fig 3
10	Install wiper blades
	Check
11	Carry out function check
			AP82.30-P-8252GZ

Fig 3: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter (211 589 05 21 00)

Courtesy of MERCEDES-BENZ USA
