Remove/install motor for steering column adjustment - AR46.10-P-0625SX

MODEL 221.0/ 1

MODEL 216

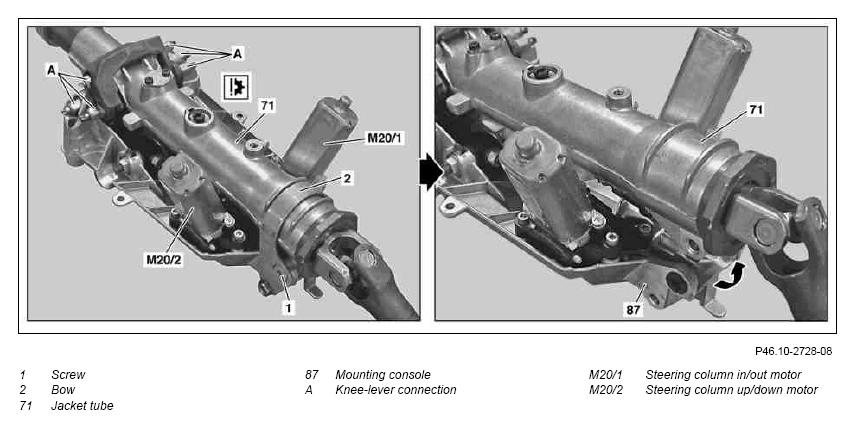

Fig 1: Identifying Steering Column Adjustment Motor Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

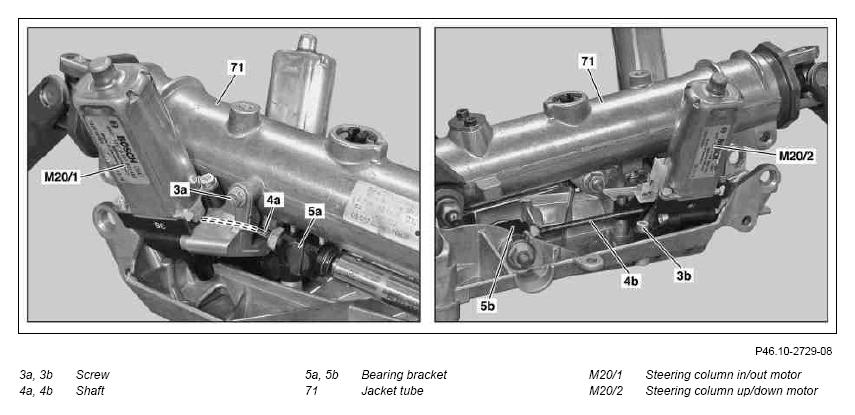

Fig 2: Identifying Steering Column Adjustment Motor Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

13.5.09

Changed connector assignment on steering column adjustment motor

Model 221 up to chassis number 133758

BT46.10-P-0625-01SX

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove steering column tube (71)	The motors (M20/1, M20/2) are extremely sensitive to the effects of side force and shocks. Do not handle at the motors (M20/1, M20/2), otherwise these will be damaged.	AR46.10-P-0400SX
	Changed connector assignment on steering column adjustment motor	Model 221 up to chassis number 133758	BT46.10-P-0625-01SX
		Only when replacing the steering column tube or steering column adjustment motor
2	Remove bolt (1) and take off bracket (2)	Installation  : Observe assembly instructions. See Detach/attach mounting console at steering column tube.	AR46.10-P-0600-10SX
3	Swivel steering column tube (71) upwards out of mounting console (87) (arrow)	For this do not loosen the knee-lever connections (A) under any circumstances as this causes play in the steering column.
4	Remove bolts (3a, 2 pieces) and detach motor (M20/1) from shaft (4a)		*BA46.10-P-1005-03P
5	Remove bolts (3b, 4 pieces) and detach motor (M20/2) from shaft (4b)		*BA46.10-P-1004-03P
6	If necessary pull shaft (4a or 4b) out of bearing bracket (5a or 5b)	Installation  : Insert the side of the shaft provided with a blue color coding (4a or 4b) into the bearing bracket (5a or 5b).
7	Install in the reverse order

JACKET TUBE

Number	Designation		Model 216	Model 221
BA46.10-P-1004-03P	Bolt, steering column up/down motor to mounting console	Nm	4	5
BA46.10-P-1005-03P	Bolt, steering column in/out motor to steering column tube	Nm	6	6
