Detaching and attaching mounting on jacket tube - AR46.10-P-0600-10SX
| AR46.10-P-0600-10SX | Detaching and attaching mounting on jacket tube | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A |
JACKET TUBE
| Number | Designation | Model 216 | Model 221 | ||
| BA46.10-P-1003-03P | Bolt, jacket tube to mounting console | Stage 1 | Nm | 8 | 8 |
| Stage 2 | - | Releasing | Releasing | ||
| Stage 3 | Nm | 4 | 4 | ||
Detaching

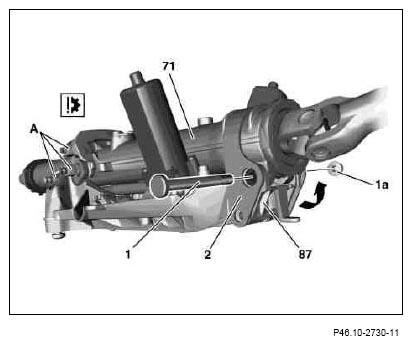

- Unscrew nut (1a) and pull out bolt (1).
- Remove bracket (2).
- Swivel jacket tube (71) upwards out of mounting console (87).
For this do not loosen the knee-lever connections (A, 6 pieces) under any circumstances as this causes play in the steering column.
Attaching
- Move the jacket tube (71) into the mounting console (87).
- Mount bracket (2).
- Mount and tighten the bolt (1) and nut (1a). (
1st stage)
- Loosen bolted connection and tighten again. (
