Replace longitudinal member front section - AR62.20-P-1260SX

MODEL 216, 221

Shown on model 221

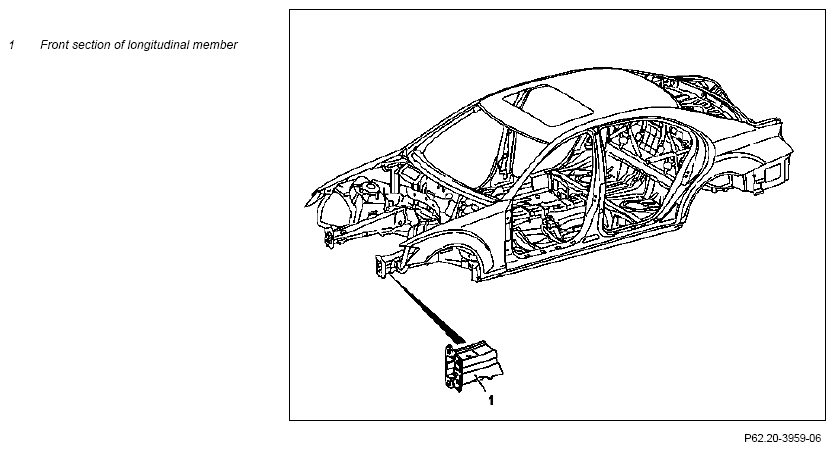

Fig 1: Identifying Front Section Of Longitudinal Member
G07540559Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of death  caused by high voltage used for electric welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV light while welding. Risk of poisoning  caused by inhaling welding fumes. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES Measures for preventing damage to vehicles or components when performing electric welding work   AH00.00-N-0005-01A
NOTES General information on repairs to body   AH60.00-N-0001-01A
NOTES Notes on paintwork repairs   AH98.00-P-9408-02A
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
1 Remove front end assembly with reinforcement   AR62.30-P-1570SX
2 Remove all detachable body components in area to be repaired
3 Cover all detachable parts remaining in vehicle COMMERCIALLY AVAILABLE TOOLS Tarp (fire-resistant)
4 Equip straightening bench with module members, cross members and straightening bracket set. IMPORTANT Observe body plans provided.
Celette straightening bench
Celette modular members 955.940
Celette additional member 955.908
Car-Bench straightening bench
Car-Bench universal crossmember set A 296
Car-Bench universal crossmember set 296/19
Celette Multi-Z straightening set system
Celette straightening bracket set 7221.300 (for model 221)
Car-Bench straightening bracket set 82456 (for model 221)
Celette 7216.309 supplementary straightening set for Celette straightening bracket set 7221.300 (for model 221)

5 Lift vehicle with two-column lifting platform. Two-post lifting platform
6 Set vehicle onto straightening bench
7 Fasten vehicle to straightening bench
8 Remove side reinforcement   AR62.30-P-1401SX
9 Remove longitudinal member front section (1)   AR62.20-P-1260-01SX
Round wire brush, braided, dia. 70 mm
Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm)
Drill (electric/pneumatic)
Straight grinder (electric/pneumatic)
Angle grinder (electric/pneumatic)
Body saw (electric/pneumatic)
Wet/dry vacuum cleaner
10 Prepare longitudinal member front section (1)   AR62.20-P-1260-05SX
Round wire brush, braided, dia. 70 mm Drill (electric/pneumatic)
INSTALLING Install
11 Install longitudinal member front section (1)   AR62.20-P-1260-07SX
Clamping pliers
Round wire brush, braided, dia. 70 mm
Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
Inert gas welder
Drill (electric/pneumatic)
Angle grinder (electric/pneumatic)
Wet/dry vacuum cleaner
12 Install side reinforcement   AR62.30-P-1401SX
13 Unfasten vehicle from straightening bench
14 Lift vehicle with two-column lifting platform. Two-post lifting platform
15 Remove straightening bench.
16 Clean weld joints and sheet metal flange with round wire brush Round wire brush, braided, dia. 70 mm
Drill (electric/pneumatic)

17 Clean repair areas
18 Prime area to be repaired using primer filler
19 Carry out seam sealing after repairs IMPORTANT Supplement standard sealants with MB body sealant. AR97.10-P-4000SX
Sealant *BR00.45-Z-1003-01A
Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
20 Paint repair areas and adjacent surfaces
21 Apply additional cavity preservation Model 216 AR97.20-P-1500SC
Model 221 AR97.20-P-1500SX
NOTES Notes on cavity preservation   AH97.20-P-0001-01B
Cavity preservation gun
MB cavity wax preservation, 1 I *BR00.45-Z-1003-05A
22 Remove tarp IMPORTANT On all covered parts remaining in vehicle.
23 Install front end assembly with front reinforcement   AR62.30-P-1570SX
24 Install all removed detachable body components
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A Sealant, white, 310 ml, DB supply specification 6069.20 A 001 989 63 20
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1003-05A Cavity preservation, solvent-free (1 I container) A 000 986 72 70 05
