Separate longitudinal member front section - AR62.20-P-1260-01SX
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1021-04A | Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 rpm) |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
Dimensions:
The following operation steps are shown on model 221 on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

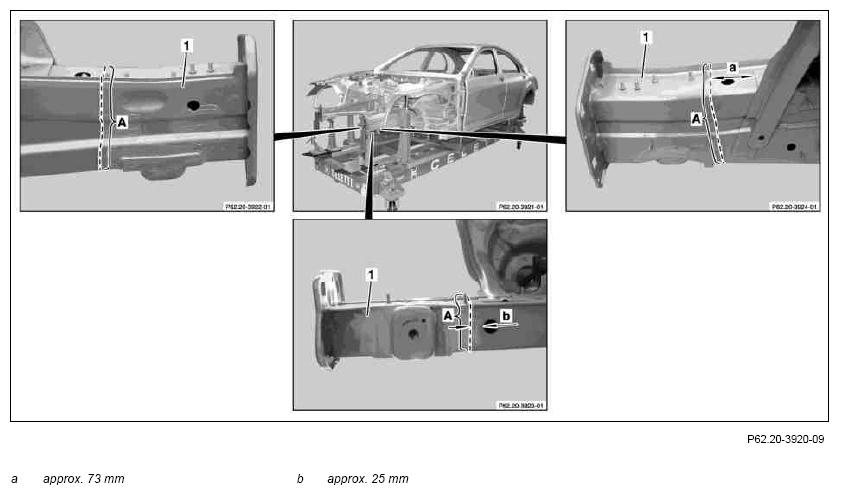

- Mark separation line on longitudinal member front section (1) (area A).
- Cut longitudinal member front section (1) at separation point with body saw (area A).
Completely separate longitudinal member front section (1).
- Remove damaged longitudinal member front section (1).

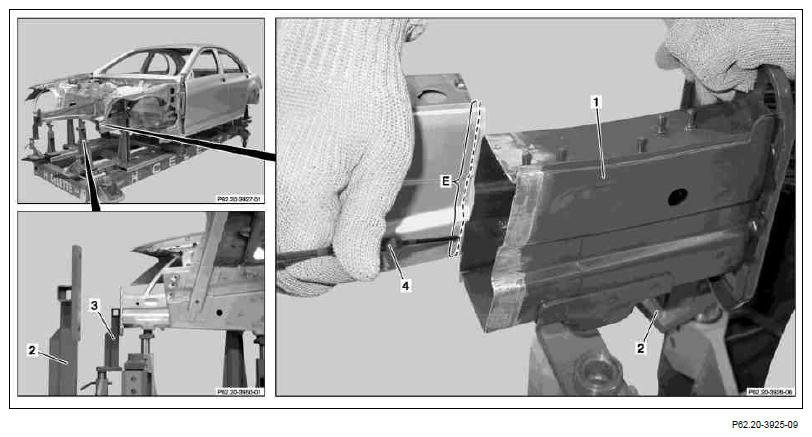

- Install left straightening tool (2).
- Position new part of longitudinal member front section (1) on left straightening tool (2).
- Mark cutting line with marking needle (4) (area E).
- Remove left straightening tool (2).

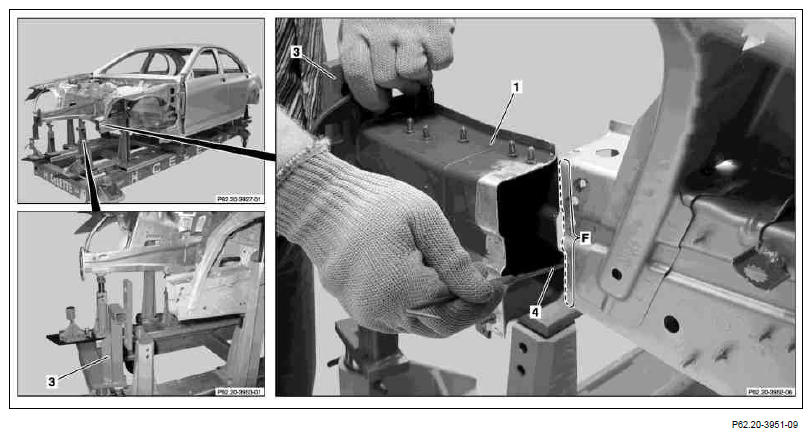

- Install right straightening tool (3).
- Position new part of longitudinal member front section (1) on right straightening tool (3).
- Mark cutting line with marking needle (4) (area F).
- Connect cutting lines and mark with marking needle (4) (areas E and F).
- Separate at separation point with body saw (areas E and F).

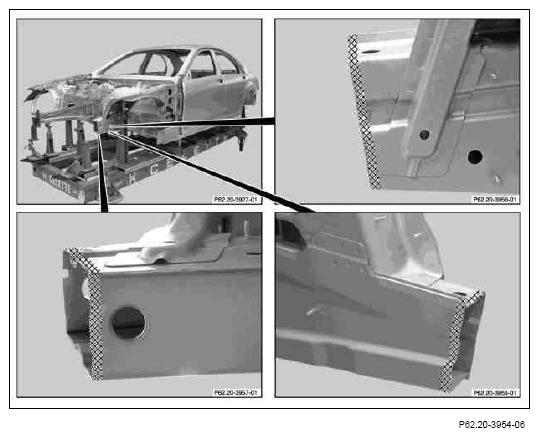

- Grind mating surfaces in cross-hatched areas down to bare metal using
round wire brush.
- Remove sanding dust using wet/dry vacuum cleaner.
