Fill Automatic Transmission With Transmission Oil - Ar27.00-D-0270WE

Transmission 722.9 in model 906

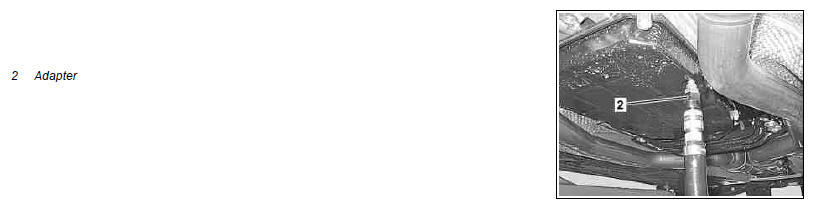

Transmission without guide tube for oil dipstick

Courtesy of MERCEDES-BENZ USA

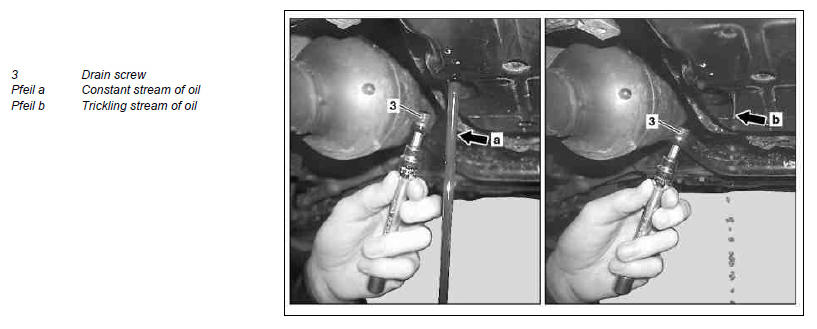

Check of trailing oil jet

Courtesy of MERCEDES-BENZ USA

	Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury  to skin and eyes when handling hot fluids.	Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only.	AS00.00-Z-0033-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on automatic transmission		AH27.19-N-0001-01C
	Fill with transmission oil
1	Raise vehicle		AR00.60-D-1000H
		Raise the vehicle aligned horizontally in the longitudinal and transverse direction. Otherwise measurement errors can occur which can result in malfunctions and transmission damage.
2	Remove drain plug (3)
3	Screw in adapter (2) and connect oil dispenser
	000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
4	Pump transmission oil into automatic transmission
	Automatic transmission fluids (ATF) (specification 236.15)		BB00.40-P-0236-15A
		Observe the Specifications for Operating Fluids and use only approved transmission oils. Otherwise malfunctions and transmission damage can occur. If automatic transmission has been repaired: ↓ Pour in quantity of transmission oil drained previously plus an additional 0.5 l of transmission oil. If automatic transmission has not been repaired. Pour in 6 l of transmission oil.
5	Start engine
6	Connect diagnostic system and check transmission oil temperature
			AD00.00-D-2000-04SD
		The transmission oil level should only be checked at a transmission oil temperature of 45 °C (113 °F). It is essential to observe all of the transmission oil temperatures specified below. Otherwise malfunctions and transmission damage can occur.
7	Heat up transmission oil to 90 °C (194 °F)	After opening oil circuit. Leave the automatic transmission at selector lever position "P" and keep the engine speed at 2500 RPM. The thermostat of the automatic transmission oil cooler opens at 90 °C (194 °F), and the automatic transmission oil cooler is filled and bled.
8	Allow transmission oil to heat up or cool down to 45 1/2C (113 1/2F).	If transmission oil temperature is too low: ↓ Leave the automatic transmission at selector lever position "P" and keep the engine speed at 2500 RPM. If transmission oil temperature is too high: ↓ Switch off engine.
9	Check transmission oil temperature with engine switched off	The transmission oil temperature must be 45 °C (113 °F). If transmission oil temperature is not 45 °C (113 °F). ↓ Allow transmission oil to heat up or cool down.
10	Start engine	Leave the automatic transmission at selector lever position "P" and the engine running at idle speed.
	Correct transmission oil level
11	Pump transmission oil into automatic transmission
	Automatic transmission fluids (ATF) (specification 236.15)		BB00.40-P-0236-15A
		Observe the Specifications for Operating Fluids and use only approved transmission oils. Otherwise malfunctions and transmission damage can occur. After replacement of automatic transmission and torque converter ↓ Pour in 4 l of transmission oil. If torque converter has not been emptied. ↓ Pour in 2 l of transmission oil.
12	Shift through all selector lever positions several times	Apply the service brake, leave the engine running at idle speed and slowly shift through the selector lever positions several times: "P" → "R" → "N" → "D" → "N" → "R" → "P".
13	Move selector lever to position "P"	Leave the engine running at idle speed.
14	Check transmission oil temperature using diagnostic system	The transmission oil temperature must be 45 °C (113 °F). If transmission oil temperature is not 45 °C (113 °F). ↓ Allow transmission oil to heat up or cool down.
15	Remove adapter (2)
	000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
16	Allow constant stream of oil (arrow a) to drain until only a trickling stream of oil (arrow b) escapes.	Leave the engine running at idle speed and do not exceed the transmission oil temperature. Otherwise too much transmission oil will be drained off, and malfunctions and transmission damage can occur. If the oil jet (arrow a) initially discharged is not constant, but rather a trickling oil jet (arrow b): ↓ Repeat procedure starting with operation step 11.
17	Screw in drain screw (3)	Replace seal.
		Drain screw on oil pan	*BA27.10-N-1005-04B
18	Switch off engine.
19	Lower vehicle
20	Disconnect diagnostic system
			AD00.00-D-2000-04SD
