Connect Star Diagnosis And Read Out Fault Memory - Ad00.00-D-2000-04SD

G10884392Courtesy of MERCEDES-BENZ USA

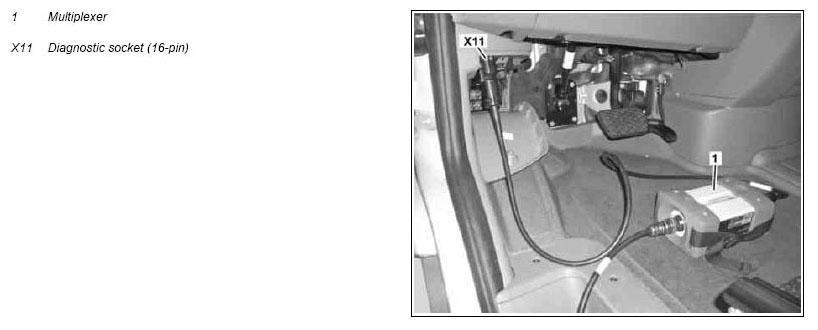

  1. Connect Star Diagnosis with multiplexer (1) to the 16-pin diagnostic socket (X11).

    IMPORTANT Ensure that plug of multiplexer (1) locks in position.

  2. Switch on ignition.
  3. Start Diagnosis Assistance System (DAS) application.

    IMPORTANT Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following the completion of the operations.

  4. Disconnect Star Diagnosis with multiplexer (1) in reverse order.
