Guide Roller For Electric Step, Removal And Installation - Ar88.30-D-8503TS

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

Type 906

with code T57 (electric step loading space sliding door on the right)

Type 906

with code T58 (electric step, loading space sliding door, left)

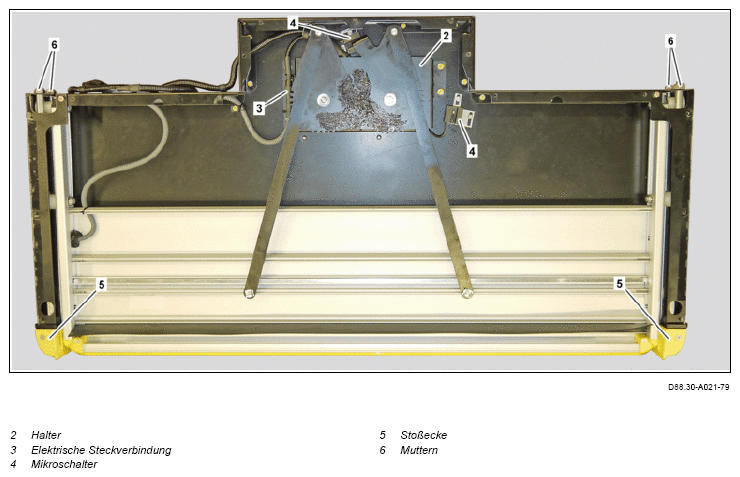

G13442639Courtesy of MERCEDES-BENZ USA

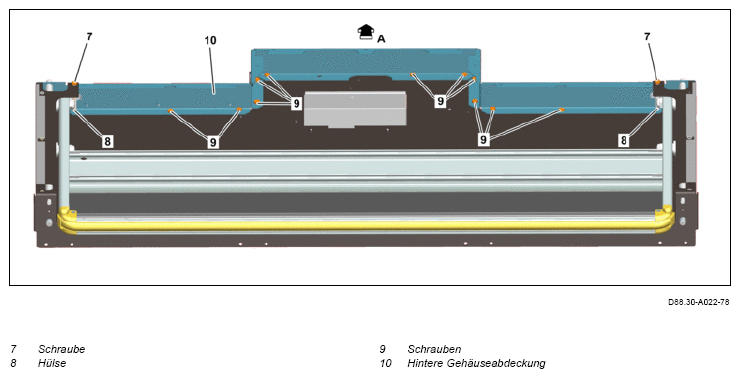

G13442640Courtesy of MERCEDES-BENZ USA

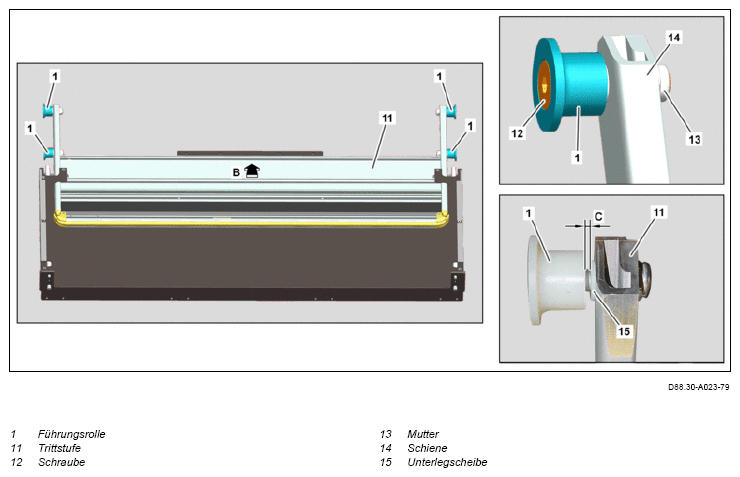

G13442641Courtesy of MERCEDES-BENZ USA
IMPORTANT Attention Risk of injury  from cuts or scrapes on sharp-edged vehicle parts Always wear protective gloves when working on or in the area of sharp, unburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
REMOVINGINSTALLING Remove, install
1 Remove electrical step. Type 906 AR88.30-D-8500H
2 Remove the holder (2) and put it to one side.   AR88.30-D-8504TS
    IMPORTANT Do not remove the electric motor from the holder (2).
3 Remove the microswitches (4) and put them to one side. Type 906
    Type 906 AR88.30-D-8507TS
4   TORQUE SPECIFICATION Type 906 screw, bumper corner on step *BA88.30-N-1009-02A
5 Remove nuts (6). IMPORTANT Hold the threaded rods.
6   TORQUE SPECIFICATION Type 906 screw rear housing cover on upper housing part *BA88.30-N-1010-02A
7 Remove the sleeves (8).
8 Unscrew the screws (9).
9 Remove the rear housing cover (10) in the direction of the arrow (arrow A).
10 Pull the step (11) out of the housing in the direction of the arrow (arrow B) until the corresponding guide roller (1) is accessible.
11 Hold the screw (12) of the corresponding guide roller (1) and remove the nut (13).
  Notes on self-locking screws and nuts   AH00.00-N-0001-01A
    TORQUE SPECIFICATION Type 906 screw connection guide roller on rail *BA88.30-N-1008-02A
12 Unscrew the screw (12) and remove the guide roller (1) with washer (15). NOTESInstallation:
Turn screw (12) in until the dimension? (C) between the guide roller (1) and the washer (15) is 2 mm. Otherwise the electrical step may malfunction.

13 Installation in reverse order.
ELECTRIC STEPS

number designation Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen)
BA88.30-N-1008-02A Bolted connection between guide roller and rail Nm 40
ELECTRIC STEPS

Number designation Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen)
BA88.30-N-1009-02A Screw the bumper to the step Nm 7
ELECTRIC STEPS

Number designation Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen)
BA88.30-N-1010-02A Screw the rear housing cover to the upper part of the housing Nm 5
