Microswitch For Electric Step Removal And Installation - Ar88.30-D-8507TS
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Type 906
with code T57 (electric step, loading space sliding door, right)
Type 906
with code T58 (electric step, loading space sliding door, left)

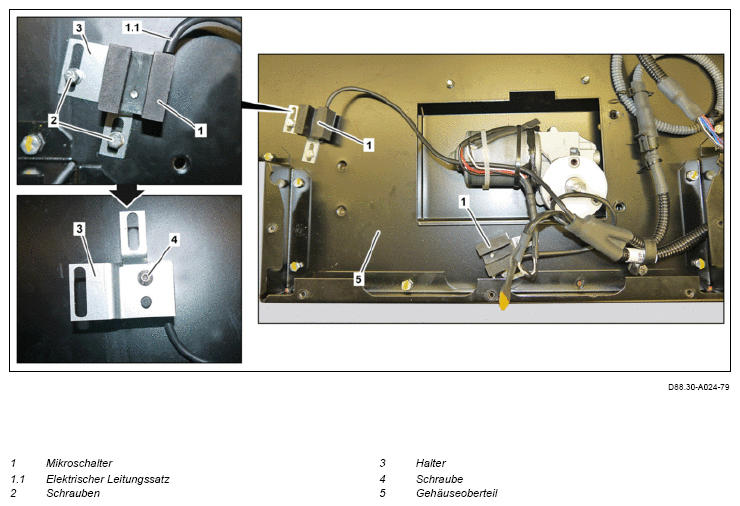

Shown with the holder for the electric motor of the electric step removed
| Risk of injury from cuts or scrapes on sharp-edged vehicle parts | Always when working on or in the area of sharp, unburred vehicle parts Wear protective gloves. Deburr the repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage to electronic components through electrostatic discharge | AH54.00-P-0001-01A | ||
| Expand | |||
| 1 | Remove the holder for the electric motor of the electric step from the upper part of the housing (5). | AR88.30-D-8504TS | |
| 2 | Mark the position of the corresponding holder (3) on the upper part of the housing (5). | ||
| 3 | Cut the corresponding electrical wiring harness (1.1) at a suitable position. | ||
| 4 | Unscrew the screws (2) and remove the corresponding microswitch (1) with the holder (3). | ||
| 5 | Unscrew the screw (4) and remove the microswitch (1) from the holder (3). | ||
| Build in | |||
| 6 | Ends of the electrical lines of the Ends of the electrical lines of the Step remaining electrical Strip the cable set (1.1). |
||
| 7 | Position the new microswitch (1) on the holder (3) and screw in the screw (4). | ||
| 8 | Position the holder (3) with the new microswitch (1) on the upper part of the housing (5) and screw in the screws (2). | *BA88.30-N-1011-02A | |
| 9 | Short the electrical wiring harness (1.1) of the new microswitch (1) to the appropriate length. | ||
| 10 | Strip the ends of the electrical lines of the new microswitch (1). | ||
| 11 | Connect the ends of the electrical lines of the new microswitch (1) to the ends of the electrical lines remaining on the step with crimp connectors. | Pay attention to the color coding of the electrical cables. Otherwise the electrical step may malfunction. |
|
| 12 | Install the holder for the electric motor of the electric step. | AR88.30-D-8504TS |
ELECTRIC STEPS
| Number | Name | Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen) | |
|---|---|---|---|
| BA88.30-N-1011-02A | Screw holder microswitch on upper part of housing | Nm | 7 |
