Connecting Rods For Removing And Installing Electric Step - Ar88.30-D-8502TS
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Type 906
with code T57 (electric step loading space sliding door on the right)
Type 906
with code T58 (electric step, loading space sliding door, left)

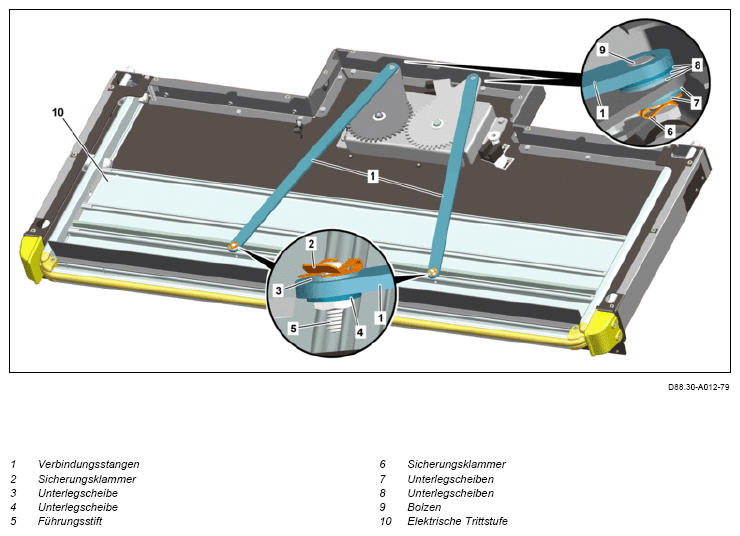

Shown on an expanded electrical step (10)

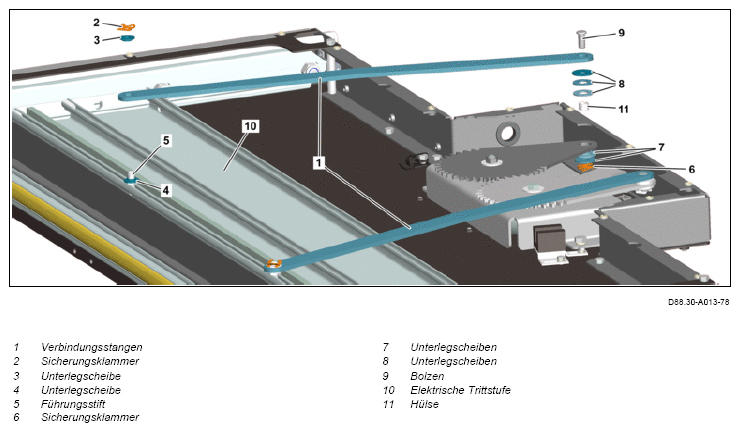

Shown on an expanded electrical step (10)
| Risk of injury from cuts or scrapes on sharp-edged vehicle parts | Always wear protective gloves when working on or in the area of sharp, unburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Remove, install | |||
| 1 | Disconnect the ground line of the on-board power supply battery. | Type 906 | AR54.10-D-0003SD |
| 2 | Remove the lower part of the housing for the electric step. | AR88.30-D-8501TS | |
| 3 | Detach the securing clip (2) of the corresponding connecting rod (1) from the guide pin (5) and remove the washer (3). | ||
| 4 | Remove the securing clip (6) of the corresponding connecting rod (1) from the bolt (9) and remove the washers (7). | ||
| 5 | Remove the corresponding connecting rod (1) with the respective bolt (9), the washers (8) and the sleeve (11). | Note the arrangement of the washers (8). Otherwise the electrical step (10) may malfunction. |
|
| 6 | Installation in reverse order. | ||
| Check | |||
| 7 | Carry out a functional check of the electrical step (10). |
