Lower Housing Part For Electric Step, Removal And Installation - Ar88.30-D-8501TS
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Type 906
with code T57 (electric step loading space sliding door on the right)
Type 906
with code T58 (electric step, loading space sliding door, left)

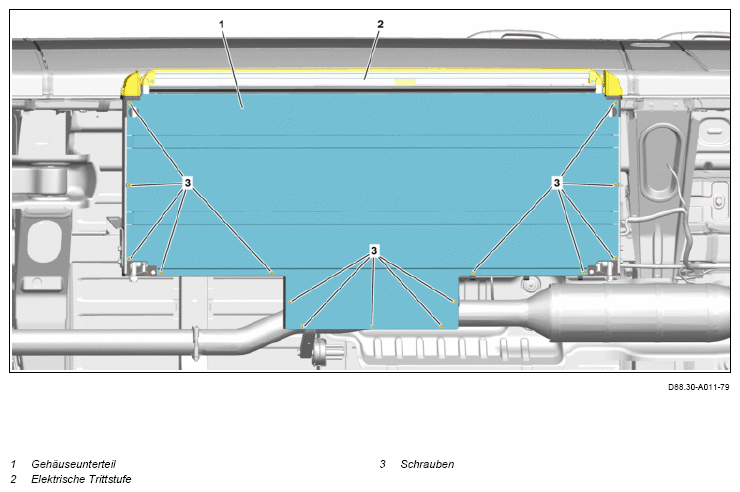

Shown on type 907.7 with code T57 (electric step, loading space sliding door, right)
| Removing, installing | |||
| Danger to life if the vehicle slips or tilts off the lifting platform | Align the vehicle between the lifting platform columns and position the four support plates at the lifting platform support points prescribed by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Jack up the vehicle with the lifting platform. | Type 906 | AR00.60-D-1000H |
| 2 | Unscrew the screws (3) and remove the lower part of the housing (1). | *BA88.30-N-1003-02A | |
| 3 | Installation in reverse order. |
ELECTRIC STEPS
| number | designation | Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen) | |
|---|---|---|---|
| BA88.30-N-1003-02A | Screw the lower part of the housing to the step | Nm | 7 |
