Disconnect/Connect Battery Ground Line - Ar54.10-D-0003SD
MODEL 906
MODEL 906 with CODE PE4 (Master code bus DCAA Argen company) or with CODE PE5 (Master code BUS platform seating, Argen company)
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Turn transmitter key in electronic ignition switch EZS control unit to position "0" | ||

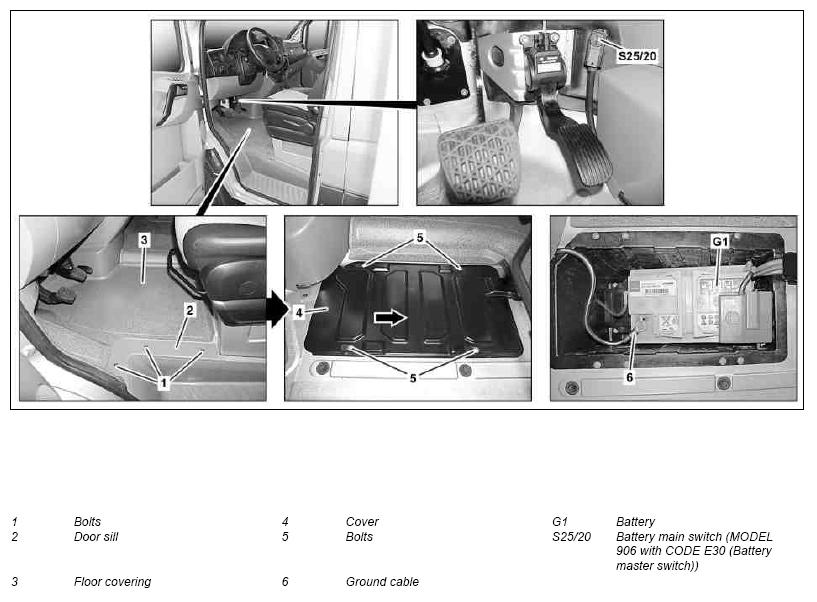

| 2 | Detach battery main switch (S25/20) | MODEL 906 with CODE E30 (Battery master switch) |
|
| 3 | Remove bolts (1) and remove door sill molding (2) | ||

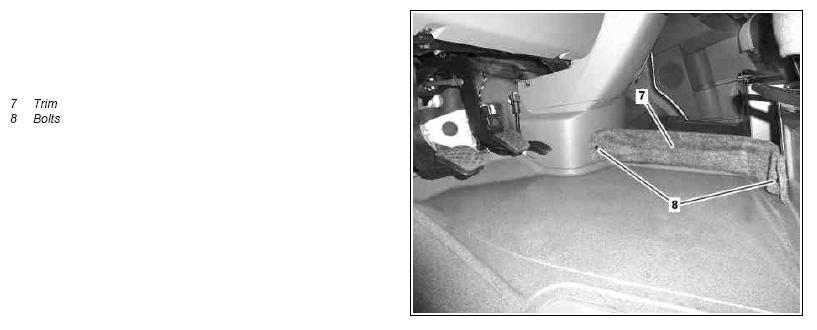

| 4 | Remove bolts (8) and panel (7) | MODEL 906 with CODE PE4 (Master code bus DCAA Argen company) or with CODE PE5 (Master code BUS platform seating, Argen company) | |
| 5 | Remove floor covering (3) | ||
| 6 | Loosen bolts (5) | ||
| 7 | Push cover (4) backwards (arrow) and remove | ||
| 8 | Disconnect ground cable (6) from battery (G1) | ||
| 9 | Using a diode test lamp, check the on-board electrical system for voltage between the positive line of the battery (G1) and the disconnected ground line (6) | Otherwise a short circuit may occur. If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. In this case the ground line of the additional battery should be disconnected. ↓ Detach ground line from additional battery. |
|
| MODEL 906 with CODE MJ7 (ECO start/stop function) with CODE XM0 (Facelift) | AR54.10-D-0111M | ||
| MODEL 906 with CODE ZO1 (James Cook Compact camper) with CODE ZO2 (James Cook Classic camper) | AR54.10-S-0007JC | ||
| MODEL 906 with CODE E28 (Additional battery 12 V 88 Ah) | AR54.10-D-0007SD | ||
| 10 | Install in the reverse order | ||
| 11 | Adjust clock and normalize power windows | Only if necessary. |
