Remove/install charge air manifold - AR09.41-P-1310MRE

ENGINE 274 in MODEL 172

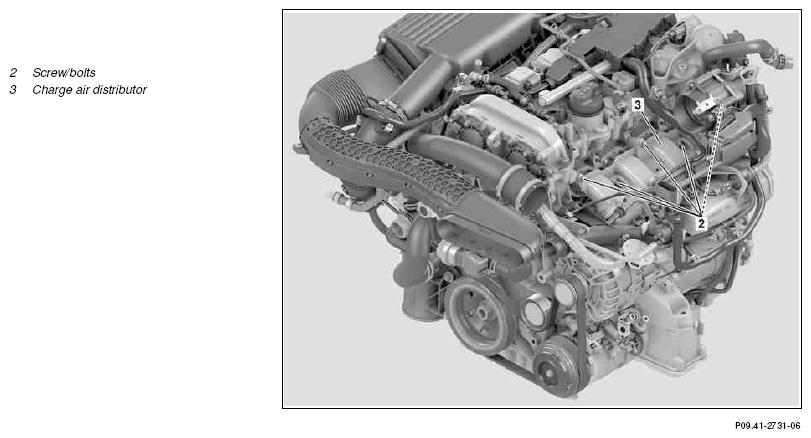

Fig 1: Identifying Charge Air Manifold Remove/Install Components (1 Of 2)
G10247831Courtesy of MERCEDES-BENZ USA

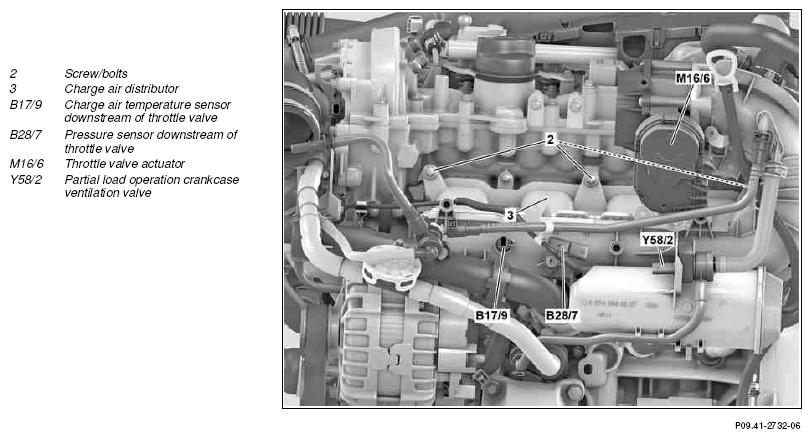

Fig 2: Identifying Charge Air Manifold Remove/Install Components (2 Of 2)
G10247832Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
NOTES Notes on coolant   AH20.00-N-2080-01A
REMOVINGINSTALLING Remove/install
1 Remove upper engine cover
2 Remove pressure in low-temperature circuit of the engine cooling system IMPORTANT Open cap for low-temperature circuit coolant expansion reservoir circuit and unbolt.
3 Disconnect coolant vent line on charge air cooler   AR09.41-P-6817MRE
4 Remove charge air cooler and place with attached lines and hoses to one side   AR09.41-P-6817MRE
5 Disconnect electrical connection for engine wiring harness on ME-SFI [ME] control unit (N3/10)
6 Unclip ME-SFI [ME] control unit (N3/10) and place to one side with connected lines
7 Remove charge air cooler bracket and ME-SFI [ME] control unit (N3/10)   AR07.08-P-7008MR
TORQUE SPECIFICATION Screw/bolt, water-cooled charge air cooler bracket to cylinder head cover/cylinder head *BA09.41-P-1003-01U
8 Disconnect electrical connection at pressure sensor downstream of throttle valve (B28/7)
9 Disconnect electrical connection on charge air temperature sensor downstream of throttle valve (B17/9)
10 Disconnect electrical connection at throttle valve actuator (M16/6)   AR07.61-P-1401MRE
11 Unclip subharness at throttle valve actuator (M16/6)
12 Disconnect electrical connection on partial load operation crankcase ventilation system valve (Y58/2) and unclip partial load operation crankcase ventilation system valve (Y58/2) to the rear out of the charge air distributor (3)
13 Unfasten guide tube and set aside   AR18.40-P-3510MR
14 Detach vacuum hoses at charge air distributor (3)
15 Remove screw/bolts (2) and remove charge air distributor (3) upwards Tightening procedure for charge air manifold
INSTALLATION IMPORTANT Observe tightening procedure for charge air distributor (3).
INSTALLATION IMPORTANT Replace seals.
AR09.41-P-1312-01MR
TORQUE SPECIFICATION Bolt, charge air distributor to cylinder head *BA09.20-P-1001-01U
16 Detach throttle valve actuator (M16/6) from charge air distributor (3) When replacing the charge air distributor (3).
AR07.61-P-1401MRE
17 Install in the reverse order
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
18 Carry out engine test run, checking the engine for leaktightness and proper operation
INTAKE MANIFOLD

Number Designation Engine 274
BA09.20-P-1001-01U Bolt, charge air distributor to cylinder head Nm 14
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation Engine 274
BA09.41-P-1003-01U Screw/bolt, water-cooled charge air cooler bracket to cylinder head cover/cylinder head Nm 9
