Remove/install charge air cooler - AR09.41-P-6817MRE
ENGINE 274 in MODEL 172

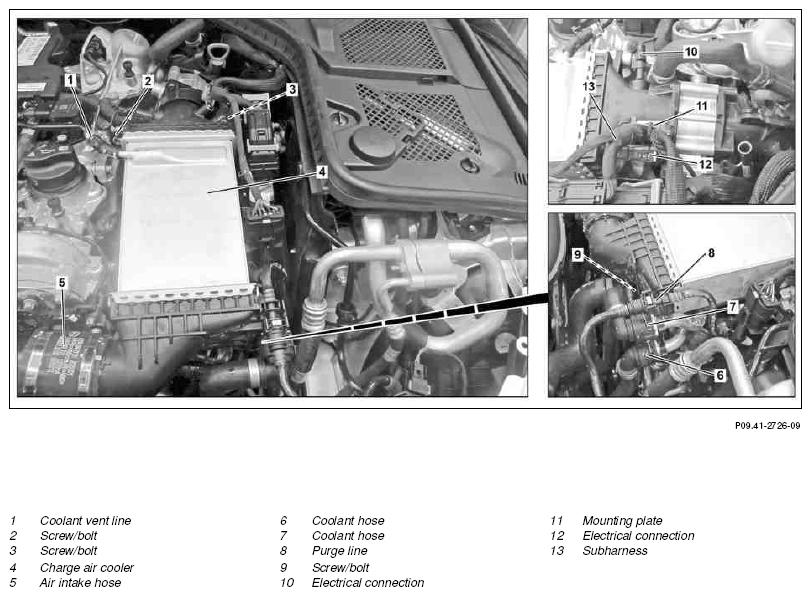

Shown on model 205
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Drain coolant in low-temperature circuit | AR09.41-P-6834CD | |
| *BF20.00-P-1001-04A | |||
| 3 | Unclip purge line (8) on charge air cooler (4) and set aside | ||
| 4 | Detach coolant hoses (6, 7) at the charge air cooler (4) | AR09.41-P-1311-01AL | |
| *BF20.00-P-1001-04A | |||
| *BA09.41-P-1002-01U | |||
| 5 | Detach coolant vent line (1) at the charge air cooler (4) | ||
| 6 | Disconnect electrical connection (10) on temperature sensor upstream of charge air cooler (/4) | ||
| 7 | Disconnect electrical connection (12) at pressure sensor upstream of throttle valve | ||
| 8 | Unclip subharness (13) from ME-SFI [ME] control unit on charge air cooler (4) | ||
| 9 | Unclip ME-SFI [ME] control unit with bracket and place to one side with connected lines | ||
| 10 | Detach mounting plate (11) | ||
| 11 | Remove screw/bolts (2, 3, 9) on charge air cooler (4) and remove charge air cooler (4) to the front from throttle valve | *BA09.41-P-1002-01U | |
| 12 | Detach air intake hose (5) from charge air cooler (4) | ||
| 13 | Pull charge air cooler (4) up and out | ||
| 14 | Install in the reverse order | ||
| 15 | Check low-temperature circuit of engine cooling system for leaktightness | AR09.41-P-1010CD | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 16 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA09.41-P-1002-01U | Screw/bolt, water-cooled charge air cooler to bracket | Nm | 9 |
COOLANT MIXING RATIO
| Number | Designation | ENGINE ALL | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze/water | up to -37°C | 50/50 |
| Antifreeze/water | up to -45°C | 55/45 | ||
| Specification | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
