Check condition of battery - AR54.10-P-1129V
MODEL 171, 172
Shown on model 171
| Removing | |||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Open engine hood and move to vertical position | AR88.40-P-1000V | |

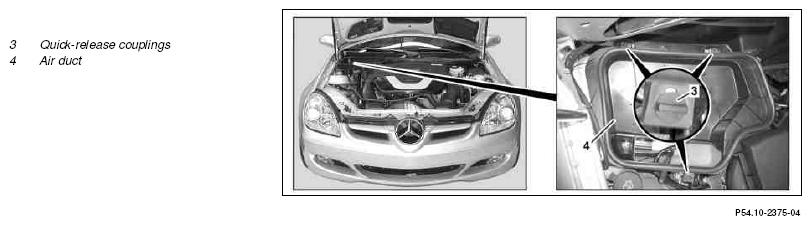

| 2 | Open quick-release couplings (3) and remove air duct (4) | ||
| Checking | |||
| 3 | Visually inspect battery or on-board electrical system battery for signs of external leakage | Remove/install battery |
|
| Model 171 Remove/install on-board electrical system battery |
AR54.10-P-0005V | ||
| Model 172 | AR54.10-P-0005W | ||
| Dispose of battery | OS54.10-P-0001-01Z | ||
| 4.1 | Check fluid level in battery or on-board electrical system battery; top up distilled water if necessary Battery or on-board electrical system battery without service fill level indicator. | ||
| 4.2 | Check fluid level in battery or on-board electrical system battery | Battery or on-board electrical system battery with service fill level indicator. Remove/install battery or on-board electrical system battery |
|
| Model 171 | AR54.10-P-0005V | ||
| Model 172 | AR54.10-P-0005W | ||
| Dispose of battery | OS54.10-P-0001-01Z | ||
| 5 | Check battery or on-board electrical system battery | Cold cranking amps as per EN |
AR54.10-P-1129-01A |
| Battery capacity 12 Ah | *BE54.10-P-1001-01A | ||
| Battery capacity 30 Ah | *BE54.10-P-1002-01A | ||
| Battery capacity 35 Ah | *BE54.10-P-1003-01A | ||
| Battery capacity 46 Ah | *BE54.10-P-1005-01A | ||
| Battery capacity 60 Ah VRLA | *BE54.10-P-1006-01A | ||
| Battery capacity 60 Ah | *BE54.10-P-1007-01A | ||
| Battery capacity 62 Ah | *BE54.10-P-1009-01A | ||
| Battery capacity 70 Ah VRLA | *BE54.10-P-1010-01A | ||
| Battery capacity 74 Ah | *BE54.10-P-1011-01A | ||
| Battery capacity 80 Ah VRLA | *BE54.10-P-1012-01A | ||
| Battery capacity 84 Ah | *BE54.10-P-1013-01A | ||
| Battery capacity 90 Ah VRLA | *BE54.10-P-1014-01A | ||
| Battery capacity 95 Ah VRLA | *BE54.10-P-1015-01A | ||
| Battery capacity 100 Ah Battery tester |
*BE54.10-P-1016-01A | ||
| 6 | Reduce increased voltage after charging process | On a battery or on-board electrical system battery that is disconnected from the on-board electrical system and with the message "Surface voltage" in the display of the Midtronics battery tester. |
AR54.10-P-1129-03A |
| 7 | Charge battery or on-board electrical system battery | With the test code "Charge and check" on the Midtronics battery tester. |
AR54.10-P-1130V |
| Install | |||
| 8 | Install air duct (4) and fasten quick-release couplings (3) | ||
| 9 | Close engine hood | AR88.40-P-1000V |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | All models | |||
|---|---|---|---|---|---|
| BE54.10-P-1001-01A | Battery capacity 12 Ah | Cold test current | as per EN | A | 170 |
| BE54.10-P-1002-01A | Battery capacity 30 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≤ 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 90 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈ 10 | |||
| Cold test current | as per EN | A | 540 | ||
| BE54.10-P-1003-01A | Battery capacity 35 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≤ 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 100 | |||
| Load time | s | 10 | |||
| Voltage | VV | 10 | |||
| Cold test current | as per EN | A | 520 | ||
| BE54.10-P-1005-01A | Battery capacity 46 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≤ 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 140 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈ 10 | |||
| Cold test current | as per EN | A | 420 | ||
| BE54.10-P-1006-01A | Battery capacity 60 Ah VRLA | Cold test current | as per EN | A | 680 |
| BE54.10-P-1007-01A | Battery capacity 60 Ah | Cold test current | as per EN | A | 510 |
| BE54.10-P-1009-01A | Battery capacity 62 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≤ 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 190 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈ 10 | |||
| Cold test current | as per EN | A | 480 | ||
| BE54.10-P-1010-01A | Battery capacity 70 Ah VRLA | Cold test current | as per EN | A | 760 |
| BE54.10-P-1011-01A | Battery capacity 74 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≤ 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 265 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈ 10 | |||
| Cold test current | as per EN | A | 680 | ||
| BE54.10-P-1012-01A | Battery capacity 80 Ah VRLA | Cold test current | as per EN | A | 800 |
| BE54.10-P-1013-01A | Battery capacity 84 Ah | Cold test current | as per EN | A | 700 |
| BE54.10-P-1014-01A | Battery capacity 90 Ah VRLA | Cold test current | as per EN | A | 950 |
| BE54.10-P-1015-01A | Battery capacity 95 Ah VRLA | Cold test current | as per EN | A | 850 |
| BE54.10-P-1016-01A | Battery capacity 100 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≤ 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 300 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈ 10 | |||
| Cold test current | as per EN | A | 760 | ||
