Opening engine hood, moving to upright position and closing - AR88.40-P-1000V
MODEL 171.4, 172.4

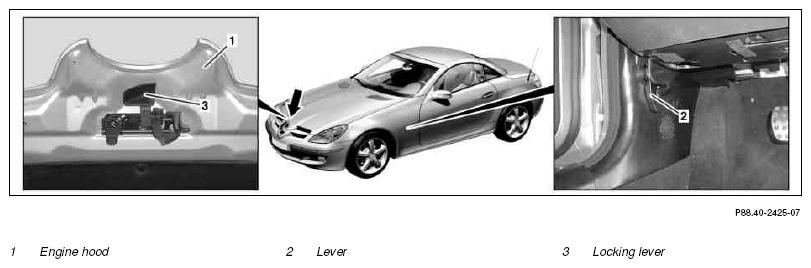

Shown on model 171.4
| Open | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Pull lever (2) to release engine hood (1) | ||
| 2 | Press locking lever (3) upward and open engine hood (1) | ||
| Move to upright position | |||
| 3 | Push engine hood (1) upward at center (arrow) beyond dead center position of engine hood hinges and move to upright position | ||
| Close | |||
| 4 | Press engine hood (1) down in center (arrow) and lock | ||
| 5 | Ensure that engine hood locks (1) properly |
