Remove/install air conditioner housing - AR83.30-P-5200SX
MODEL 216.3, 221.0/1
Shown on model 221
Shown on model 221
| Remove/install | |||
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| 1 | Drain coolant at radiator | Engine 272, 273 | AR20.00-P-1142SX |
| Engine 275 | AR20.00-P-1142H | ||
| Engine 156 | AR20.00-P-1142SMG | ||
| Engine 629 | AR20.00-P-1142SXD | ||
| Engine 642 | AR20.00-P-1142SXI | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Discharge air conditioning system | AR83.30-P-1760SX | |
| 3 | Remove cover above brake booster | Model 221.095/195 | |
| 4 | Remove cover of high-voltage battery | Model 221.095/195 | |

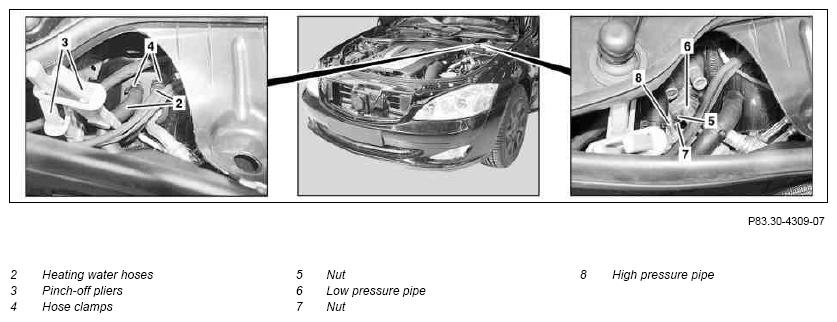

| 5 | Cover working area with rags and detach hot water hoses (2) from connection lines to heat exchanger | ||
| 6 | Seal connection lines to heat exchanger | Fig 4 | |
| 7 | Detach refrigerant lines from high-voltage battery and seal connections | Model 221.095/195 | |
| Fig 4 | |||
| 8 | Detach low-pressure line (6), seal openings of low-pressure line (6) and expansion valve | ||
| *BA83.30-P-1001-01K | |||
| 9 | Detach high pressure line (8), seal openings of high pressure line (8) and expansion valve | ||
| *BA83.30-P-1002-01K | |||
| 10 | Remove crossmember below dashboard | AR68.10-P-1120SX | |
| 11 | Remove center console | Model 216 | AR68.20-P-2000SC |
| Model 221 up to 31.5.09 except for CODE (800) Model year 2010 | AR68.20-P-2000SX | ||
| Model 221 as of 1.6.09 or with code (800) Model year 2010 | AR68.20-P-2000SXH | ||

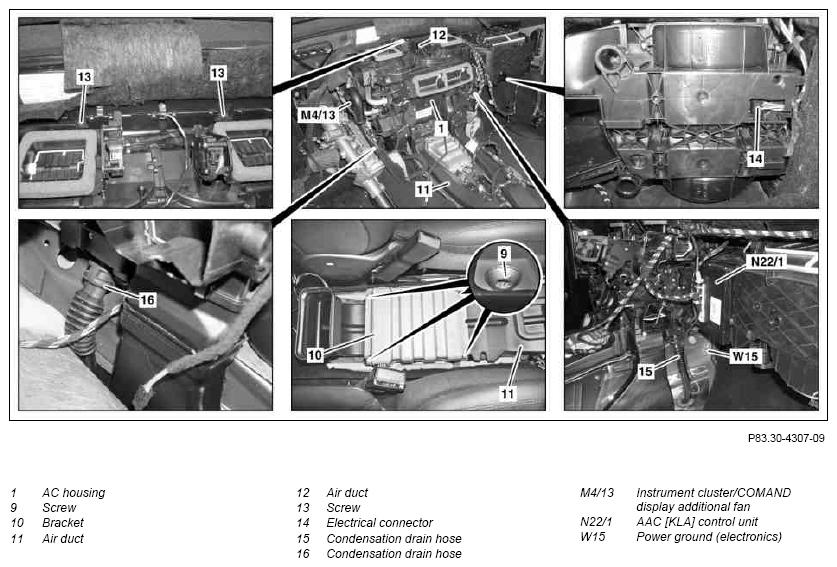

| 12 | Undo bolts (9) and remove rear bracket (10) over air duct (11). | On model 221 without code (582) Rear air conditioner, model 216 | |
| 13 | Remove air duct (11) from air conditioner housing (1) | On model 221 without code (582) Rear air conditioner, model 216 | |
| 14 | Remove left sound deadening mat over steering column tube and air duct (12) of instrument cluster/COMAND display additional fan (M4/13) | ||

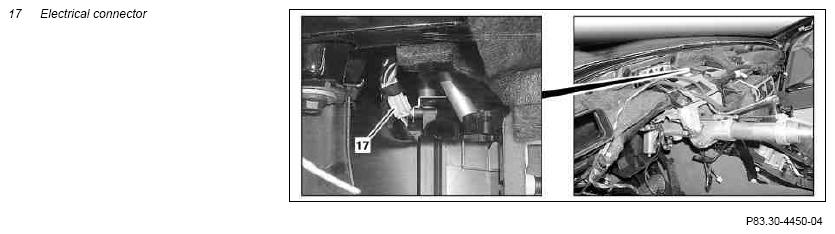

| 15 | Disconnect electrical connector (17) | ||
| 16 | Fold over damping mat on air conditioner housing (1) and remove bolts (13) of electrical wiring harness bracket | ||
| 17 | Detach electrical connectors on AAC [KLA] control unit (N22/1) | ||
| 18 | Detach electrical wiring harness from air conditioner housing (1) blower motor and disconnect electrical connector (14) | ||
| 19 | Pull right footwell floor covering to one side, detach power ground (electronics) (W15) from body and detach condensation water drain hose (15) from air conditioner housing (1) | ||
| 20 | Pull left footwell floor covering to one side and detach condensation water drain hose (16) from air conditioner housing (1) | ||
| 21 | Expose electrical wiring harnesses surrounding the air conditioner housing (1) | ||
| 22 | Remove air conditioner housing (1) out of the vehicle with assistant | ||
| Long-life grease | *BR00.45-Z-1001-06A | ||
| 23 | Install in the reverse order | ||
| 24 | Teach in and normalize the actuator motors | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
AIR CONDITIONING
| Number | Designation | Model 221 | Model 216 | |
|---|---|---|---|---|
| BA83.30-P-1001-01K | Nut for low-pressure line to high-pressure line | Nm | 8 | 8 |
| BA83.30-P-1002-01K | Nut for high-pressure line to expansion valve | Nm | 8 | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | Long-life grease | A 000 989 63 51 11 |
