Retrofit TV tuner - AN82.60-P-0001SX

MODEL 221.0## (except 221.074/077) 1#, 221.1## (except 221.174/177/179) 1# with CODE 800 (Model year 2010) with CODE 801 (Model year 2011) with CODE 802 (Model year 2012) with CODE 803 (Model year 2013) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE Z07 (Top protection)

Shown on vehicle with code (864) Rear entertainment system

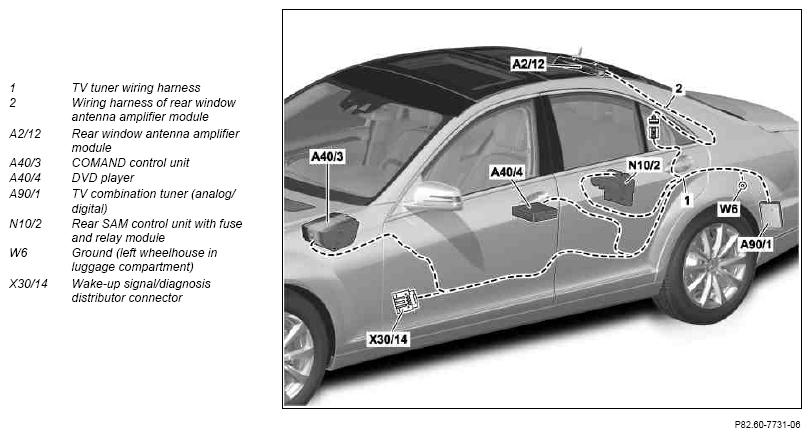

Fig 1: Identifying Retrofit TV Tuner - Shown On Vehicle With Rear Entertainment System

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove door sill molding on front left and rear left
			AR68.30-P-4100SX
2	Remove paneling from upper C-pillar and lower C-pillar
			AR68.30-P-4490SX
3	Remove rear shelf paneling
			AR68.30-P-4580SX
4	Remove center seat cushion
		Model 221.0, model 221.1 with code 224 (Design individual rear seat system)	AR91.12-P-1020SZ
5	Remove seat frame of rear seat
		Model 221.0, 221.1 with code 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints), model 221.1 with code 224 (Design individual rear seat system)	AR91.12-P-1520SX
6	Remove rear passenger compartment side trim panel
			AR68.30-P-4780SX
7	Remove COMAND controller unit (A40/3)
		except code 529 (HIGH Class Japan)	AR82.85-P-1100SX
8	Remove driver seat
			AR91.10-P-1000SX
9	Remove stowage compartment or ashtray housing
			AR68.20-P-2420SX
10	Remove paneling on left in trunk
			AR68.30-P-4600SX
		The paneling on the left in the trunk is no longer required.
11	Remove right paneling in trunk
			AR68.30-P-4600SX
12	Remove audio tuner control unit with bracket
			AR82.60-P-7605SX
13	Detach rear SAM control unit with fuse and relay module (N10/2) and place to one side with electrical lines still connected
			AR54.21-P-1258SX
14	Detach overpressure reservoir and place to one side with electrical and pneumatic lines still connected
		with code 409 (Left/right front multicontour seats), with code 432 (Left and right dynamic multicontour seat)	AR91.25-P-1570SX
15	Remove left windowbag
			AR91.60-P-0693SX
16	Remove rear window antenna amplifier module (A2/12)
			AR82.62-P-8300SX
17	Remove wiring harness (2) of rear window antenna amplifier module		AN82.62-P-0001-05SX
	Install
18	Install new rear window antenna amplifier module (A2/12)
			AR82.62-P-8300SX
19	Install wiring harness (2) of rear window antenna amplifier module		AN82.62-P-0001-06SX
20	Install left windowbag
			AR91.60-P-0693SX
21	Install headliner
			AR68.30-P-4300SX
		Assemble headliner except for the left and right C-pillar paneling.
22	Modify TV tuner wiring harness (1)	except code 864 (Rear entertainment system)	AN82.60-P-0001-08SX
		with code 864 (Rear entertainment system)	AN82.60-P-0001-08SXA
23	Retrofit optical fiber for TV combination tuner (analog/digital) (A90/1)		AN82.60-P-0001-11SX
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Notes on removal/installation of the fiber optic cable for the Media Oriented System Transport (MOST)		AH82.60-P-0001-06A
24	Install TV combination tuner (analog/digital) (A90/1) in trunk		AN82.60-P-0001-01SX
25	Retrofit TV tuner wiring harness (1)	except code 864 (Rear entertainment system)	AN82.60-P-0001-03SX
		with code 864 (Rear entertainment system)	AN82.60-P-0001-03SXA
		Wiring harness repair kit	Fig 2
26	Install new paneling on left of trunk
			AR68.30-P-4600SX
27	Install remaining parts
28	Connect Star Diagnosis
29	Enter special equipment on the vehicle data card and the online vehicle data card	Enter code (863) TV tuner (digital/analog).
30	Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN)
31	Disconnect STAR DIAGNOSIS
32	Carry out function check on TV combination tuner (analog/digital) (A90/1)

Fig 2: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
