Remove/install side paneling in rear - AR68.30-P-4780SX
MODEL 221.0 Paneling in rear on backrest
MODEL 221.1 except CODE (Z07) Top protection Paneling in rear on backrest

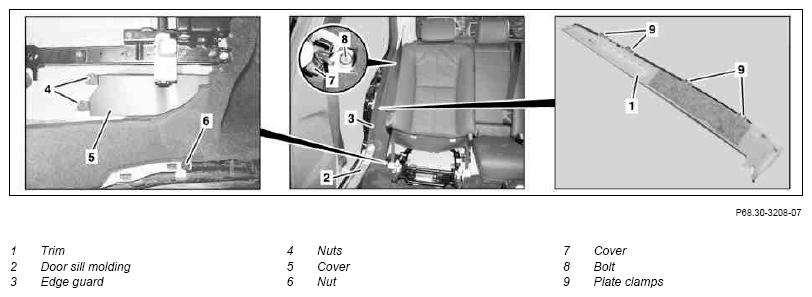

Shown on right paneling
| Removing, Install | |||
| 1 | Remove left or right rear seat cushion and lay down to side with electrical line connected. | Model 221.0/1 without code (223) Rear bench seat with electrically adjustable outer seats, lumbar supports as well as pneumatically adjustable head restraints or Model 221.1 with code (224) Design rear bucket seat |
AR91.12-P-1020SY |
| Model 221.0/1 with code (223) Rear bench seat with electrically adjustable outer seats, lumbar supports as well as pneumatically adjustable head restraints or Model 221.1 with code (224) Design rear bucket seat |
AR91.12-P-1020SX | ||
| 2 | Remove door sill molding (2) | AR68.30-P-4100SX | |
| 3 | Detach edge guard (3) in area of door sill molding (2) and wheelhouse | ||
| 4 | Unscrew nuts (4) from cover (5) and remove cover (5). | ||
| 5 | Unscrew nut (6) | ||
| 6 | Loosen cover (7) and screw out bolt (8) | ||
| 7 | Unclip paneling (1) from bottom upward and remove | Figure | |
| 8 | Install in the reverse order |
