InCar hotspot function - GF82.60-P-0011LEC
MODEL 221 with CODE (P61) Grand Edition special model

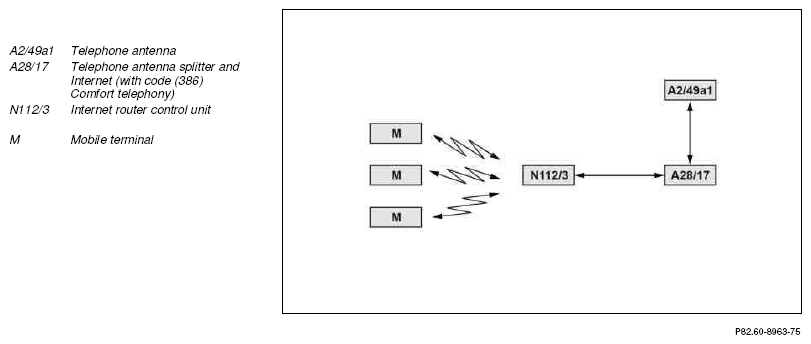

Shown with 3 connected mobile terminals (as an example)
InCar Hotspot function requirements, general
- Status of circuit 30g ON
- Mobile terminal with Internet and wireless local area network (WLAN) capability present
- Subscriber Identification Module (SIM) card for mobile Internet plugged into Internet router control unit
InCar Hotspot, general
The InCar Hotspot function makes it possible to use the Internet wirelessly in the vehicle using mobile terminals; this is achieved using the Internet router control unit.
The Internet router control unit exchanges information with the mobile terminals via a radio interface as the Wireless Access Point (WAP), and routes the signals to the Internet.
The Internet router control unit performs the following individual functions:
- Function sequence, connect mobile terminal and set up Internet connection
- Function sequence, transmit and receive radio signals on the Wireless Local Area Network (WLAN)
- Function sequence, transmit and receive Internet signals via the telephone antenna
- Function sequence, display, modify and reset system settings
- Function sequence, status indication via LED
- Function sequence, software updates
- Function sequence, run-on time
Function sequence, connect mobile terminal and set up Internet connection
In order to connect the mobile terminal, the user must search for networks (Wireless Local Area Network) on the mobile terminal and select the "InCar Hotspot" network. After entering the Wireless Access Point (WAP) number (specified in the "InCar Hotspot" owner's manual) the mobile terminal is a subscriber of the Wireless Local Area Network.
In order to set up the connection to the Internet, the user enters the following address in the address line of the Internet browser:
As soon as the Personal Identification Number (PIN) of the SIM card in the Internet router control unit has been entered on the home screen and the mobile radio provider has been selected, the Internet connection can be used. Display and operation take place on the mobile terminal.
Up to 8 devices can be connected simultaneously.
Function sequence, transmit and receive radio signals on the Wireless Local Area Network (WLAN)
The Internet router control unit communicates with the mobile terminals via an integrated radio interface for the Wireless Local Area Network.
Function sequence, transmit and receive Internet signals via the telephone antenna
The Internet router control unit transmits signals to the Internet via the following route:
- Telephone and Internet antenna splitter (with code (386) Comfort telephony)
- Telephone antenna
(The signals are received via the opposite route.)
Function sequence, display, modify and reset system settings
The system settings can be examined and modified on the home screen. The "Overview" tab gives you an overview of the Wireless Local Area Network and Internet settings. The settings can be modified in the "Settings" tab, for which a password must be entered. The initial password is "admin" and should be changed by the user. Display and operation take place on the mobile terminal.
Detailed information about the settings can be found in the "InCar Hotspot" owner's manual.
Resetting takes place on the Internet router control unit itself. If the button in the narrow opening above code letter "F" is pressed with a suitable object (such as a paper clip) for approx. 2 s, the Internet router control unit is reset to the manufacturer default settings.
If the button above "H" is pressed in the same way, the Internet router control unit is restarted and all settings are retained.
Function sequence, status indication via LED
The Internet router control unit has three LEDs, which indicate the status of the following from left to right:
- Power supply
- Wireless Local Area Network (WLAN)
- Mobile telephone network
Power supply
The following statuses are indicated:
- LED illuminated in red: fault
- LED illuminated in green: power supply normal
- LED flashes in green: energy saving mode
Wireless Local Area Network (WLAN)
The following statuses are indicated:
- LED off: no Wireless Local Area Network available
- LED illuminated in red: fault
- LED illuminated in blue: Wireless Local Area Network available
- LED flashes in blue (slow and regular): Wireless Local Area Network being activated
- LED flashes in blue (irregular): data exchange active
Mobile telephone network
The following statuses are indicated:
- LED off: no network available
- LED illuminated in red: unable to read SIM card
- LED illuminated in yellow: network available, no data exchange
- LED flashes in yellow (slow and regular): network connection being activated
- LED flashes in yellow (irregular): data exchange active
Function sequence, software updates
Software updates are available from the Mercedes-Benz Service Center. The software updates are stored on a mobile terminal and activated via the home screen in the "Settings" tab under "Update" when the mobile terminal is connected with the Internet router control unit. Display and operation take place on the mobile terminal.
Function sequence, run-on time
The Internet router control unit is operational for the set run-on time with circuit 30g OFF.
