Overview of system components for InCar Hotspot - GF82.60-P-9989LEC

MODEL 221 with CODE (P61) Grand Edition special model

Shown with code (386) Comfort telephony

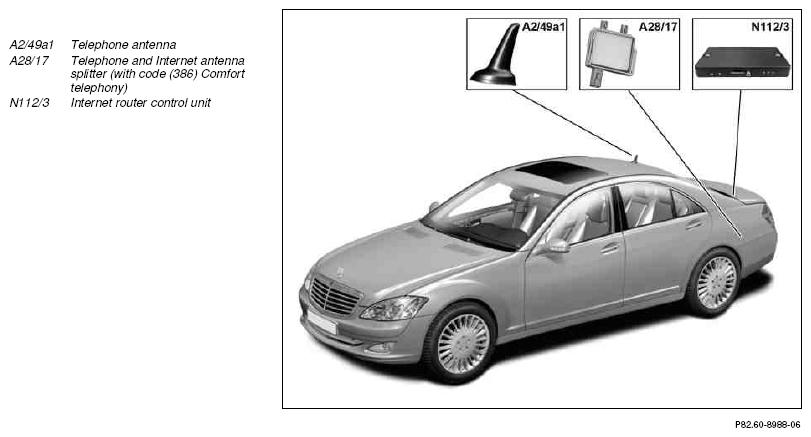

Fig 1: Overview Of InCar Hotspot System Components
G10128821Courtesy of MERCEDES-BENZ USA
  Telephone antenna, component description A2/49a1 GF82.62-P-4117LEC
  Antenna splitter component description A28/17
With code (386) Comfort telephony		 GF82.62-P-3125LEC
  InCar Hotspot, component description N112/3 GF82.60-P-3130LEC
  Table of contents for function description for InCar Hotspot   GF82.60-P-0993LEC
