Electrical function schematic for InCar Hotspot - PE82.60-P-2063-97SAC

Code:	Designation:	Position:
1	Wireless Local Area Network (WLAN), communication
2	Internet, signal	4G
2	Internet, signal	6E
A2/49a1	Telephone antenna	5C
A28/17	Telephone and Internet antenna splitter	6G
N112/3	Internet router control unit	2G
U260	Valid for comfort telephony	5F

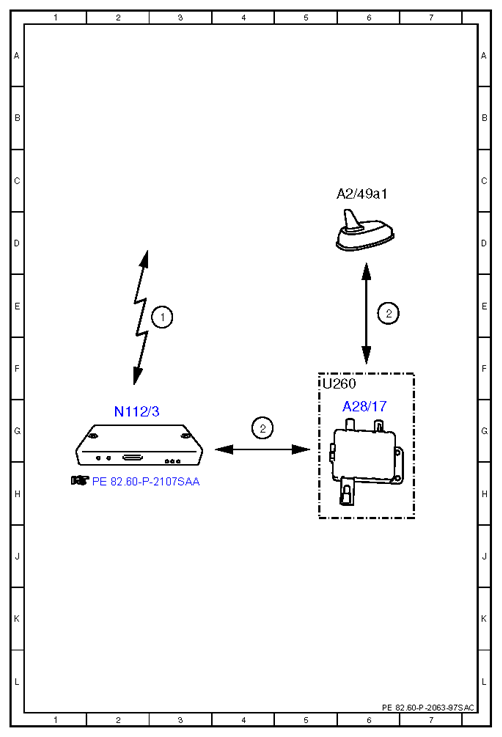

Fig 1: InCar Hotspot Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
