Retrofit Universal Media Interface - AZ82.85-P-0004CYB

MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 510 (Audio 20 CD with CD changer) without CODE 359 (TELE AID emergency call system)

MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 359 (TELE AID emergency call system)

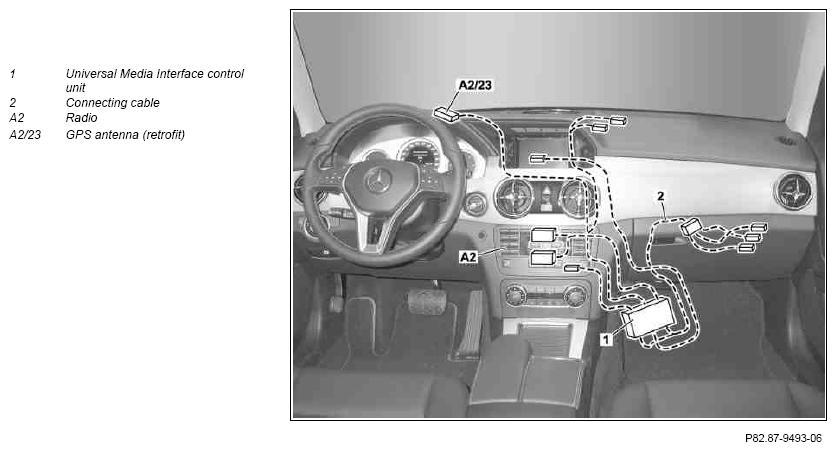

Fig 1: Identifying Retrofit Universal Media Interface

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove screws/bolts at seat rails of front passenger seat
			AR91.10-P-1000CW
		Only remove the two front screws/bolts of seat rails and only loosen the two rear screws/bolts.
2	Remove door sill from front passenger footwell
3	Loosen edge guard in area of A-pillar trim and of door sill in front passenger footwell
4	Remove paneling on A-pillar in front passenger footwell
5	Remove front right floor covering
6	Remove glove box
			AR68.10-P-1200CY
7	Remove radio (A2)
			AR82.60-P-7502CY
8	Remove Audio/COMAND display
			AR82.60-P-7722CY
9	Remove instrument cluster
			AR54.30-P-6015CYA
10	Remove cover of center instrument panel speaker (H4/27)	Long wedge	Figure
11	Remove center instrument panel speaker located under cover	On vehicles with code (810) Sound system The center instrument panel speaker is reinstalled in combination with the Universal Media Interface adapter wiring harness.
	Install
12	Retrofit Universal Media Interface adapter wiring harness		AZ82.85-P-0004-02CYB
13	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0004-03CYC
14	Retrofit GPS antenna (retrofit) (A2/23)		AZ82.61-P-0003-02CYB
15	Retrofit connecting cable (2)		AZ82.85-P-0004-05CYB
		Rechargeable screwdriver, rechargeable drill Body keyhole saw
16	Strap down the AUX connection electrical connector installed as standard in the glove box to the vehicle wiring harness and wrap felt tape around it
17	Install glove box
			AR68.10-P-1200CY
18	Retrofit Universal Media Interface control unit (1)		AZ82.85-P-0004-04CYB
19	Install remaining parts
20	Connect Star Diagnosis
			AD00.00-P-2000-04A
21	Perform retrofit variant coding	Using STAR DIAGNOSIS carry out variant coding for activating the functions. Code software calibration number (SCN); to do so log in navigation by entering 3-digit code "56o" in instrument cluster. Note here that the third digit must be the letter "o" like Oscar. On vehicles with code (518) Media Interface, delete the Media Interface special equipment from the vehicle data card and the vehicle data card online, as it is no longer available.
22	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Universal Media Interface retrofitted as per AZ82.85-P-0004CYB " under field organization texts to design group 82.
23	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
24	Run function check on Universal Media Interface	The AUX connection electrical connector that is installed as standard no longer works. It is only possible to display information from the Universal Media Interface via instrument cluster on vehicles with code (442) Comfort multifunction steering wheel.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
