Remove/install radio display - AR82.60-P-7722CY

MODEL 204.9 with CODE 510 (Audio 20 CD with CD changer)

MODEL 204.9 with CODE 511 (Audio 50 APS with DVD changer)

MODEL 204.9 with CODE 512 (COMAND APS with DVD changer)

MODEL 204.9 with CODE 523 (MB Audio 20 radio)

MODEL 204.9 with CODE 525 (MB Audio 50 APS radio)

MODEL 204.9 with CODE 527 (COMAND APS with single DVD drive (with navigation))

Shown on model 204.9 up to model year 2013 with CODE (525) MB Audio 50 APS radio

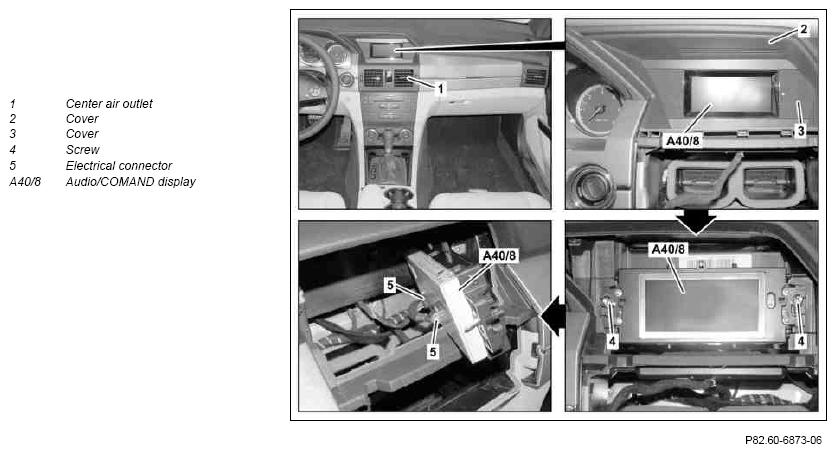

Fig 1: Identifying Radio Display Remove/Install Components - Shown On Model 204.9

Courtesy of MERCEDES-BENZ USA

Shown on model 204.9 as of model year 2013 with CODE (525) MB Audio 50 APS radio

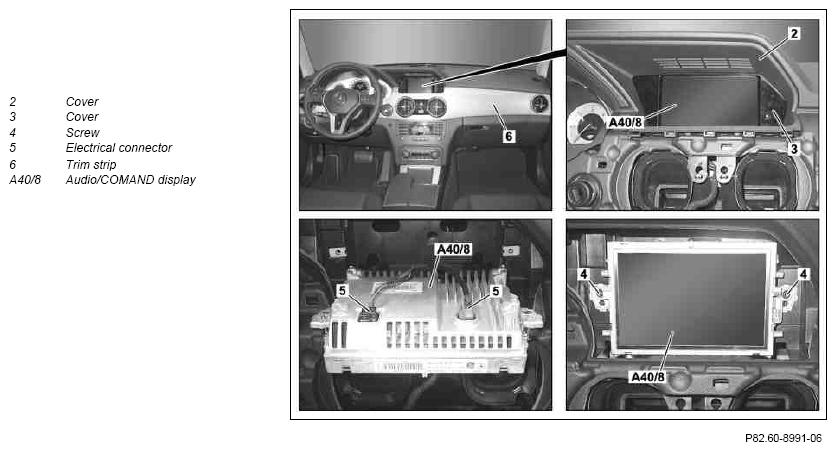

Fig 2: Identifying Radio Display Remove/Install Components - Shown On Model 204.9

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Connect Star Diagnosis and buffer basic data of Audio/COMAND display (A40/8) in Star Diagnosis	When replacing Audio/COMAND display (A40/8).
			AD00.00-P-2000-04A
		Transfer buffered basic data to new Audio/COMAND display (A40/8).
2.1	Remove center air vent (1)	Model 204.9 up to model year 2013
			AR83.10-P-4503CY
2.2	Remove trim strip (6) from instrument panel	Model 204.9 as of model year 2013
			AR68.10-P-1180CYA
3	Unclip paneling (2) and remove	Mounting wedge	Figure
4	Unclip cover (3) and remove
5	Loosen screws/bolts (4) of Audio/COMAND display (A40/8)	Screws/bolts (4) remain on the Audio/COMAND display (A40/8).
6	Disconnect electrical connectors (5) from Audio/COMAND display (A40/8) and remove Audio/COMAND display (A40/8)
7	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
