Retrofit Universal Media Interface - AZ82.85-P-0004CY

MODEL 204.9## 1# up to 7/30/12 up to model year 2013 with CODE 510 (Audio 20 with CD changer) with CODE 523 (MB Audio 20 radio) without CODE 359 (TELE AID emergency call system)

Installation kit with docking station

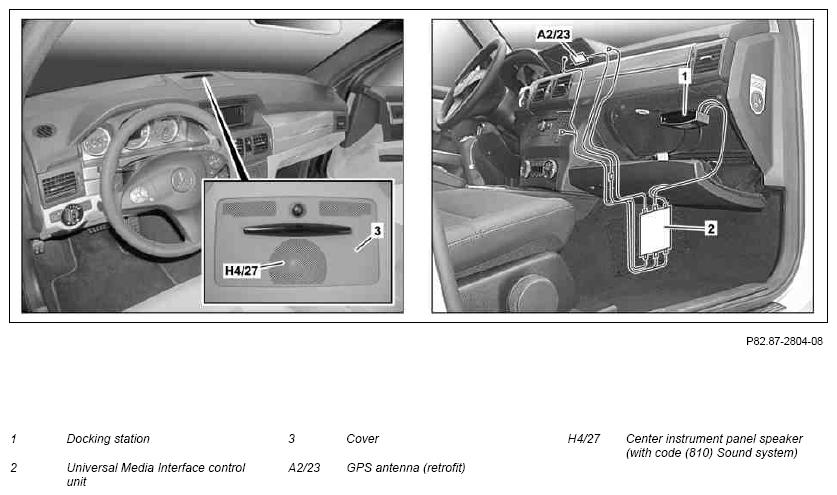

Fig 1: Identifying Retrofit Universal Media Interface Components

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Move front passenger seat toward rear
2	Remove front two screws/bolts from front passenger seat, loosen the two rear screws/bolts on the front passenger seat	Screw/bolt, seat to vehicle floor	BA91.10-P-1002-01Q
3	Remove passenger side floor covering
4	Remove glove box
			AR68.10-P-1200CY
5	Remove radio
			AR82.60-P-7502CW
6	Remove Audio/COMAND display
			AR82.60-P-7722CY
7	Unclip cover (3) and remove	Long wedge	Figure
8	Remove center instrument panel speaker (H4/27) from beneath the cover (3)	On vehicles with code (810) Sound system The center instrument panel speaker (H4/27) is installed again in combination with the Universal Media Interface adapter wiring harness.
	Install
9	Retrofit Universal Media Interface adapter wiring harness		AZ82.85-P-0004-02CY
10	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0004-03CY
11	Retrofit GPS antenna (retrofit) (A2/23)		AZ82.61-P-0003-02CY
12	Retrofit docking station (1)		AZ82.85-P-0004-01CY
13	Install glove box
			AR68.10-P-1200CY
		Lay down docking station wiring harness (1) in front passenger footwell. The docking station wiring harness (1) is connected to the Universal Media Interface control unit (2) at a later point.
14	Retrofit Universal Media Interface control unit (2)		AZ82.85-P-0004-04CY
15	Install remaining parts
16	Connect Star Diagnosis
			AD00.00-P-2000-04A
17	Perform retrofit variant coding	Using STAR DIAGNOSIS carry out variant coding for activating the functions. Using XENTRY, manually code vehicles up to production period 30.5.09, to do so set "Customer-specific settings" of Universal Media Interface (UMI) instrument cluster to "installed". Code vehicles as of production period 1.6.09 with software calibration number (SCN). To do so, log on navigation by entering the 3-digit code "56o" into the instrument cluster. Ensure here that the third digit is the letter "o" for Oscar. For vehicles with code (518) Media interface, delete the media interface special equipment from the vehicle data card and the online vehicle data card, as it is no longer available.
18	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
19	Run function check on Universal Media Interface	The AUX connection electrical connector that is installed as standard no longer works. It is only possible to display information from the Universal Media Interface via instrument cluster on vehicles with code (442) Comfort multifunction steering wheel.
20	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Universal Media Interface retrofitted as per AZ82.85-P-0004CY " note under field organization text to design group 82.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
