Retrofit Mercedes-Benz InCar Internet - AZ82.85-P-0005CYB

MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 830 (China version)

MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 830 (China version)

Routing diagram without code (518) Media interface

Fig 1: Routing Diagram Without Code (518) Media Interface

Courtesy of MERCEDES-BENZ USA

Routing diagram with code (518) Media interface

Fig 2: Routing Diagram With Code (518) Media Interface

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove glove box
			AR68.10-P-1200CY
2	Remove screws/bolts at seat rails of front passenger seat
			AR91.10-P-1000CW
3	Remove door sill from front passenger footwell
4	Detach edge guard in area of A-pillar trim and door sill in front passenger footwell
5	Remove paneling on A-pillar in front passenger footwell
6	Remove front right floor covering
7	Remove COMAND controller unit (A40/3)
			AR82.60-P-7502CY
8	Remove Audio/COMAND display (A408)
			AR82.60-P-7722CY
	Install
9	Retrofit InCar Internet adapter wiring harness		AZ82.85-P-0005-02CYB
10	Retrofit low voltage differential signal (LVDS) head unit wiring harness and LVDS display wiring harness		AZ82.85-P-0004-03CYC
11	Retrofit connecting cable (2) for InCar Internet adapter line (20)		AZ82.85-P-0005-05CYA
		Rechargeable screwdriver, rechargeable drill

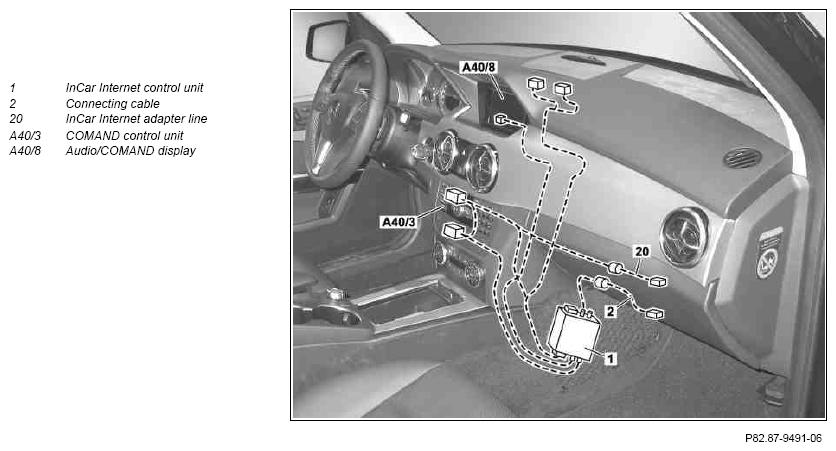

12	Retrofit InCar Internet control unit (1)		AZ82.85-P-0005-04CYB
13	Install remaining parts
14	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
15	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Mercedes-Benz InCar Internet retrofitted as per AZ82.85-P-0005CYB " under field organization texts to design group 82.
16	Perform initial startup for InCar Internet with XENTRY	For the initial startup, model series 204 must be entered in the "ICI variant coding" menu item in XENTRY.
17	Disconnect STAR DIAGNOSIS
			AD00.00-P-2000-04A
18	Perform function check of InCar Internet
