Retrofit Drive Kit Plus for Apple iPhone - AZ82.60-P-0019CY

MODEL 204.9 as of 7/31/12 as of model year 2013 without CODE 528 (COMAND with DVD changer) without CODE 867 (SPLITVIEW)

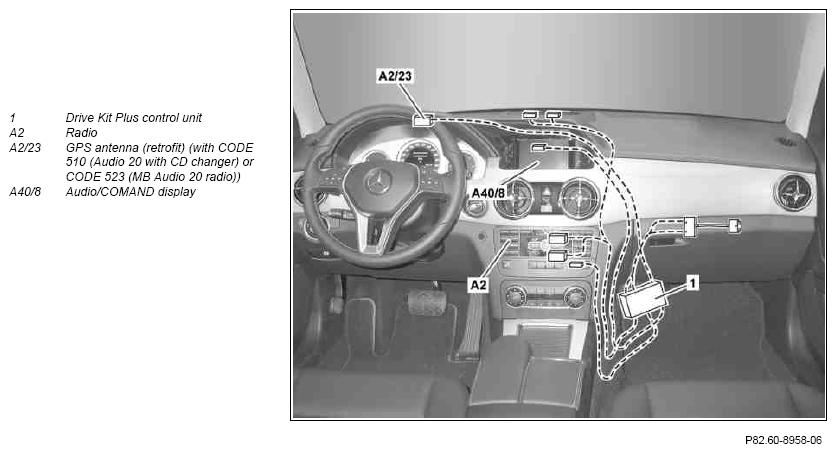

Routing diagram for Drive Kit Plus for the Apple iPhone 4, shown on left-hand drive vehicle with CODE 510 (Audio 20 with CD changer)

Fig 1: Routing Diagram For Drive Kit Plus For Apple iPhone 4

Courtesy of MERCEDES-BENZ USA

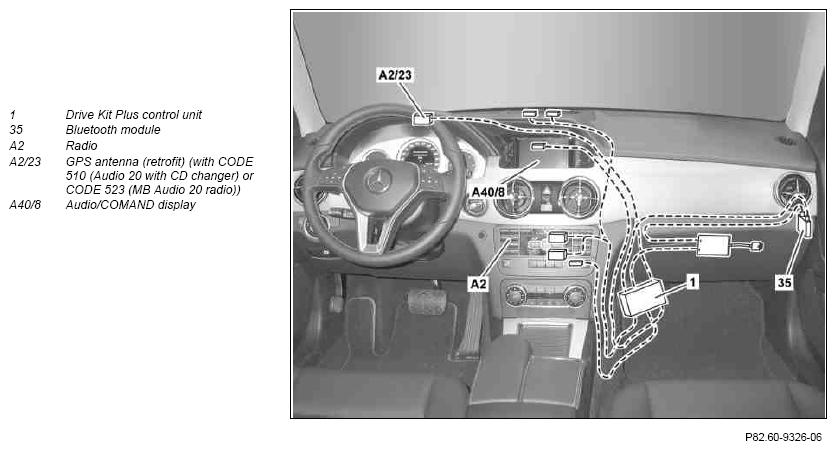

Routing diagram for Drive Kit Plus for the Apple iPhone 5, shown on left-hand drive vehicle with CODE 510 (Audio 20 with CD changer)

Fig 2: Routing Diagram For Drive Kit Plus For Apple iPhone 5

Courtesy of MERCEDES-BENZ USA

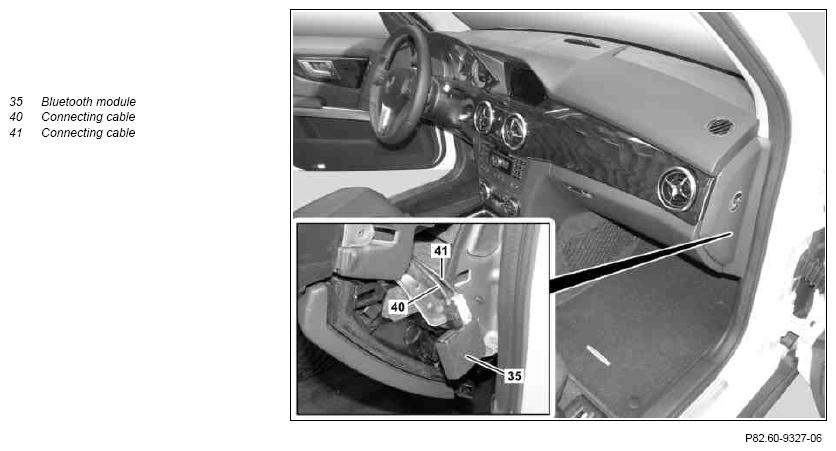

Installation location of Bluetooth module (35) for Drive Kit Plus for the Apple iPhone 5, shown on left-hand drive vehicle

Fig 3: Identifying Bluetooth Module For Drive Kit Plus Installation Position

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Remove screws/bolts from guide rails of front passenger seat
			AR91.10-P-1000CW
		Only remove the two front screws/bolts of the guide rail and only loosen the two rear screws/bolts.
2	Remove door sill from front passenger footwell
3	Detach edge guard in area of A-pillar trim and door sill in front passenger footwell
4	Remove paneling on A-pillar in front passenger footwell
5	Remove front right floor covering
6	Remove glove compartment
			AR68.10-P-1200CY
7	Release instrument cluster	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
			AR54.30-P-6015CYA
		Disconnection of the electrical connector on the instrument cluster is not necessary.
8	Remove audio component
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502CY
9	Remove Audio/COMAND display
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722CY
10	Detach center console	With CODE 518 (Media Interface)
			AR68.20-P-2000CW
11	Remove telephone console	With CODE 386 (Comfort telephony) or CODE 518 (Media Interface)
			AR68.20-P-2150CW
	Install
12	Prepare vehicle for retrofitting of Drive Kit Plus for the Apple iPhone		AZ82.60-P-0019-08CY
13	Retrofit Drive Kit Plus adapter wiring harness		AZ82.60-P-0019-01CY
		Long wedge	Figure
14	Retrofit Drive Kit Plus low voltage differential signaling (LVDS) wiring harness		AZ82.60-P-0019-04CY
15	Retrofit GPS antenna (retrofit) (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
			AZ82.60-P-0019-06CY
16	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)
			AZ82.60-P-0019-05CY
17	Retrofit Drive Kit Plus connection line set		AZ82.60-P-0019-02CY
		Clarify with the customer whether the iPhone cradle is to be installed.
18	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0019-03CY
19	Install glove compartment with connection line (40), connection line (41) and data line of Drive Kit Plus connection line set	When retrofitting Drive Kit Plus for the Apple iPhone 5.
			AR68.10-P-1200CY
		The cover at the side of the instrument panel is installed at a later stage.
20	Retrofit Bluetooth module(35)	When retrofitting Drive Kit Plus for the Apple iPhone 5.
			AZ82.60-P-0019-07CY
21	Install remaining parts
	Update Vehicle Documentation (VeDoc)
22	Attach note "Drive Kit Plus for the Apple iPhone retrofitted as per AZ82.60-P-0019CY " under field organization texts to DG 68 and DG 82
23	Enter special equipment in vehicle online data card - CODE "89o"	Ensure here that the third digit is the letter "o" for Oscar.
24	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
25	Perform adaptation and redocumentation of Drive Kit Plus control unit	Only with "Car-to-X" XENTRY: "Drive Kit Plus" control unit > Adaptation > Initial startup
26	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for the Apple iPhone with the audio component using SCN coding.
27	Disconnect diagnostic system
			AD00.00-P-2000-04A
28	Install software on USB stick and flash onto Drive Kit Plus control unit via Apple iPhone update adapter	Instructions, see ODUS: Service and Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus.
	Check
29	Perform function check of Drive Kit Plus for Apple iPhone	See Owner's Manual.

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
