Remove/Install Front Bumper - AR88.20-P-2000CY
MODEL 204.9
MODIFICATION NOTES
| 25.9.15 | "Calibrate front 360° camera using the diagnostic system" added. | Operation step 12 |

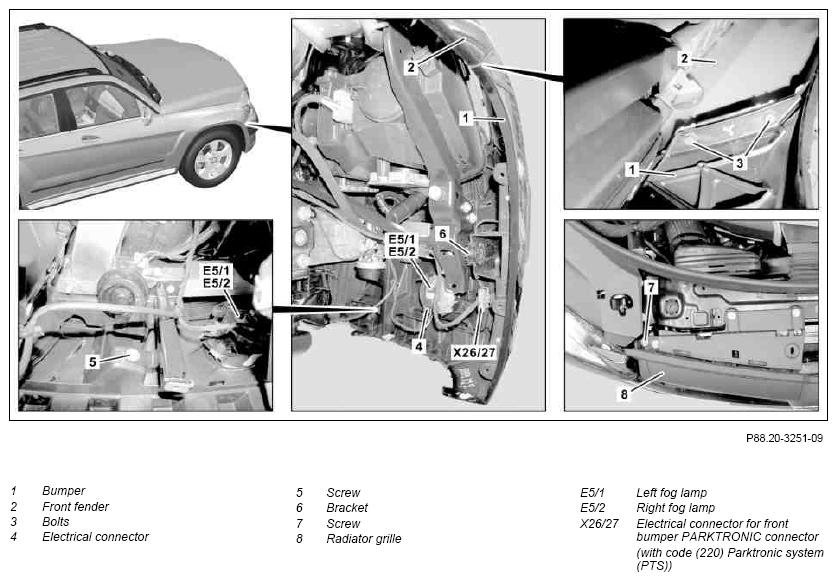

Shown right side of vehicle with removed inner fender
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front engine compartment paneling | AR61.20-P-1105CY | |
| 2 | Unscrew bolts (5) on left and right side of vehicle | ||
| 3 | Disconnect electrical connector (4) from left front fog lamp (E5/1) and right front fog lamp (E5/2) | ||
| 4 | Loosen left and right fender liner in area of bumper (1) and pry out from bumper (1) with assembly wedge. | Fig 1 | |
| 5 | Unscrew bolts (3) on left and right side of vehicle | ||
| 6 | Disconnect Parktronic electrical connector from front bumper (X26/27) | Model 204.9 with code 220 (PARKTRONIC) | |
| 7 | Loosen radiator grille (8) | AR88.40-P-4001CY | |
| 8 | Unscrew bolts (7) on left and right side of vehicle | ||
| 9 | Remove bumper (1) with radiator grille (8) |
AR60.00-P-0700-01WX | |
| Gap dimension | *BE60.00-P-1001-01U | ||
| Fig 1 | |||
| Figure | |||
| In the event of complaints ↓ Adjust bumper (1) |
|||
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Check adjustment of left front fog lamp (E5/1) and right front fog lamp (E5/2), | AP82.10-P-8260CW | |
| In the event of complaints ↓ Correct adjustment |
|||
| Calibrate | |||
| 12 | Calibrate front 360° camera using the diagnostic system | Model 204.9 with code 501 (360° camera) | AD00.00-P-2000-04A |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 204.9 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01U | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4 (±1) | ||
| Engine hood to radiator grille | Dimension "C" | mm | - | ||
| Engine hood to bumper | Dimension "D" | mm | 6 (+3/-1) | ||
| Engine hood to A-pillar | Dimension "E" | mm | 4 (+1.5/-1) | ||
| Bumper to headlamp | Dimension "F" | mm | 3 (+2/-1) | ||
| Picture | AR60.00-P-0700-01WX | ||||
