Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01WX
MODEL 204.9
MODIFICATION NOTES
| 17.7.08 | Value changed: gap dimension | *BE60.00-P-1001-01U | |
| Value changed: gap dimension | *BE60.00-P-1002-01U | ||
| Value changed: gap dimension | *BE60.00-P-1003-01U | ||
| Value changed: gap dimension | *BE60.00-P-1004-01U | ||
| Value changed: gap dimension | *BE60.00-P-1005-01U |
CHECK VALUES FOR GAPS
| Number | Designation | Model 204.9 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01U | Gap dimension | Engine hood to fender | Dim. "A" | mm | 4 (±1) |
| Engine hood to headlamp | Dim. "B" | mm | 4 (±1) | ||
| Engine hood to radiator grille | Dim. "C" | mm | - | ||
| Engine hood to bumper | Dim. "D" | mm | 6 (+3/-1) | ||
| Engine hood to A-pillar | Dim. "E" | mm | 4 (+1.5/-1) | ||
| Bumper to headlamp | Dim. "F" | mm | 3 (+2/-1) | ||
| See picture | AR60.00-P-0700-01WX | ||||
| BE60.00-P-1002-01U | Gap dimension | Front door to fender | Dim. "G" | mm | 4.5 (±1) |
| Front door to rear door | Dim. "H" | mm | 4.5 (±1) | ||
| Front door to roof frame | Dim. "I" | mm | 10 (+2/-1) | ||
| Rear door to roof frame | Dim. "J" | mm | 9.5 (+2/-1) | ||
| Rear door to side section, bottom | Dim. "K" | mm | 4 (±1) | ||
| Driver door cover to rear door cover | Dim. "W" | mm | 4 (+1.5/-0.5) | ||
| See picture | AR60.00-P-0700-01WX | ||||
| BE60.00-P-1003-01U | Gap dimension | Trunk lid to rear fender, top | Dim. "L" | mm | - |
| Trunk lid to rear lamp unit | Dim. "M" | mm | - | ||
| Trunk lid to bumper | Dim. "N" | mm | - | ||
| Rear fender to rear lamp unit | Dim. "O" | mm | 2 (±1) | ||
| Taillamp to bumper | Dim. "P" | mm | 2 (±1) | ||
| Taillamp, trunk lid to taillamp | Dim. "M1" | mm | - | ||
| See picture | AR60.00-P-0700-01WX | ||||
| BE60.00-P-1004-01U | Gap dimension | Fuel filler flap (around) | Dim. "Q" | mm | 3.0 (±1) |
| See picture | AR60.00-P-0700-01WX | ||||
| BE60.00-P-1005-01U | Gap dimension | Liftgate to roof | Dim. "R" | mm | - |
| Liftgate to roof (spoiler removed) | Dim. "R1" | mm | 8 (±1.5) | ||
| Spoiler to roof | Dim. "R2" | mm | 5.5 (±1.5) | ||
| Liftgate to rear fender | Dim. "S" | mm | 4 (±1) | ||
| Liftgate to taillamp | Dim. "T" | mm | 4 (±1) | ||
| Liftgate to bumper | Dim. "U" | mm | 5.5 (±1.5) | ||
| Liftgate to D-pillar | Dim. "V" | mm | - | ||
| Rear window and D-pillar | Dim. "X" | mm | 4 (±1) | ||
| Top sliding roof to roof | Dim. "Y" | mm | 5 (±1.5) | ||
| Rear window to liftgate, bottom | Dim. "Z" | mm | 3.5 (±1.5) | ||
| See picture | AR60.00-P-0700-01WX | ||||

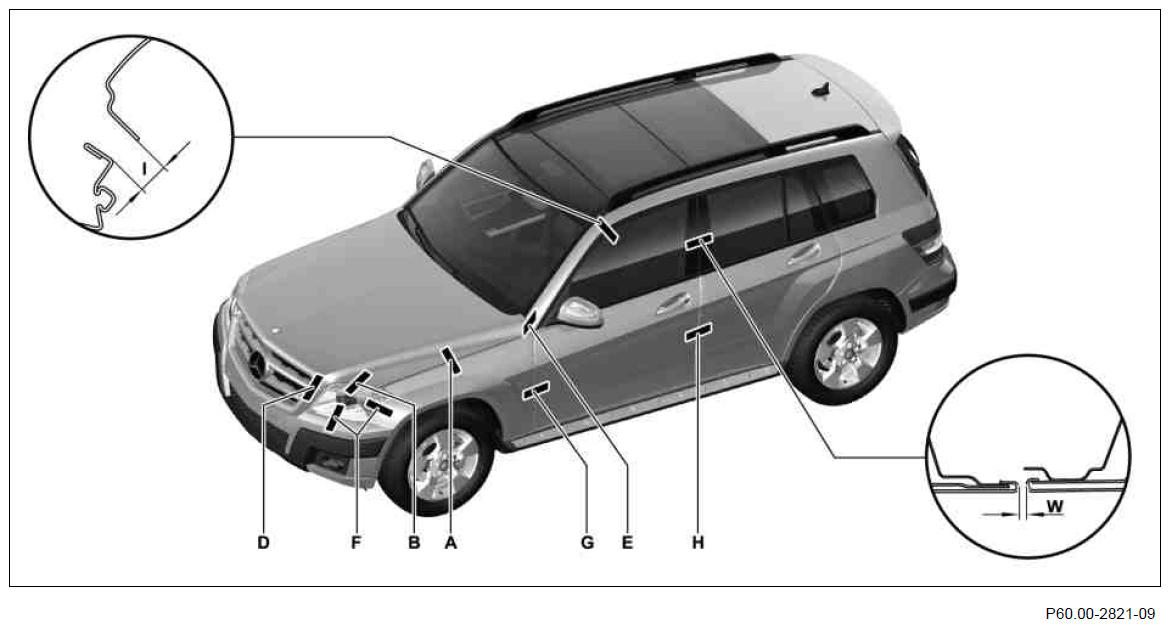

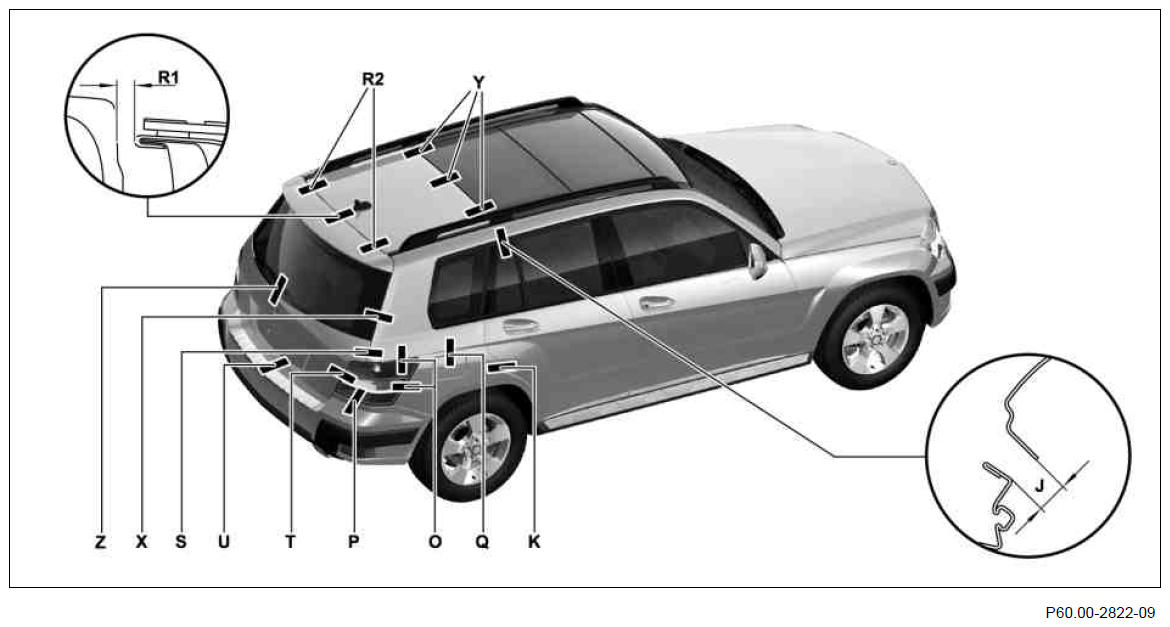

Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
Front door to roof (dimension "I") is not a circumferential reference dimension, therefore it is necessary to maintain the approval position according to the drawing.
Rear door to roof frame (dimension "J") is not a circumferential reference dimension, therefore it is necessary to maintain the approval position according to the drawing.
