Remove/Install Radiator Grille - AR88.40-P-4001CY
MODEL 204.9
MODIFICATION NOTES
| 31.8.15 | Expose electrical connector on 360° camera at front and disconnect, added. | Operation step 9 | |
| 31.8.15 | Calibrate front 360° camera using the diagnostic system added. | Operation step 13 |

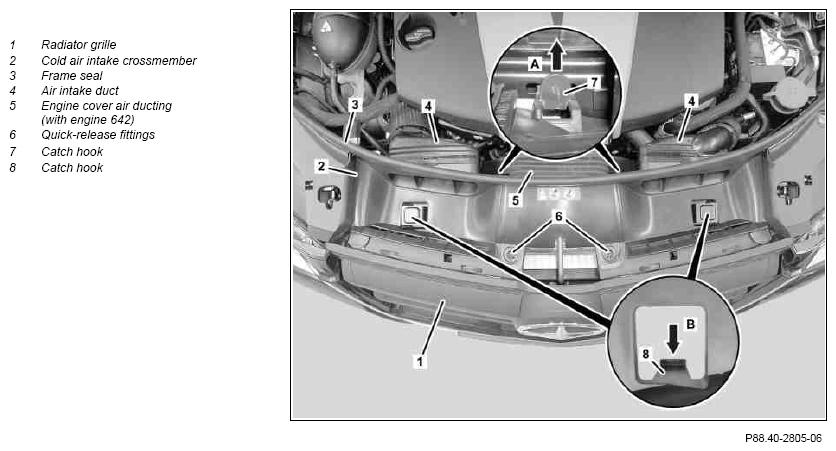

Shown on engine 642, except code 501 (360°camera)

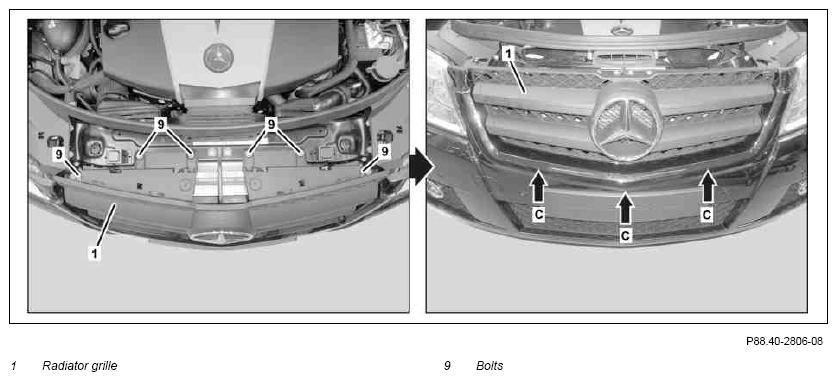

Shown on vehicle except code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Remove sealing frame (3) in area of cold air intake crossmember (2) | ||
| 3 | Remove left and right air intake duct (4) | ||
| 4 | Remove engine cover air ducting (5) | Model 204.9 with engine 642 | |
| 5 | Unlock quick-release coupling (6) | ||
| 6 | Unlock catch hooks (7) in direction of arrow (arrow A) and raise cold air intake crossmember (2). | ||
| 7 | Unlock catch hooks (8) in direction of arrow (arrow B) and remove cold air intake crossmember (2) | ||
| 8 | Remove screw/bolts (9) | ||
| 9 | Expose electrical connector on 360° camera at front and disconnect. | Model 204.9 with code 501 (360° camera) | AR54.30-P-3001CY |
| 10 | Unclip radiator grille (1) from bumper toward rear from catch hooks (arrows C) | ||
| 11 | Remove radiator grille (1) | ||
| 12 | Install in the reverse order | ||
| 13 | Calibrate front 360° camera using the diagnostic system | Model 204.9 with code 501 (360° camera) | AD00.00-P-2000-04A |
