Retrofit iPod interface - AZ82.60-P-0014GZ

MODEL 164 except CODE (498) Japan version except retrofitted hands-free system FSE12

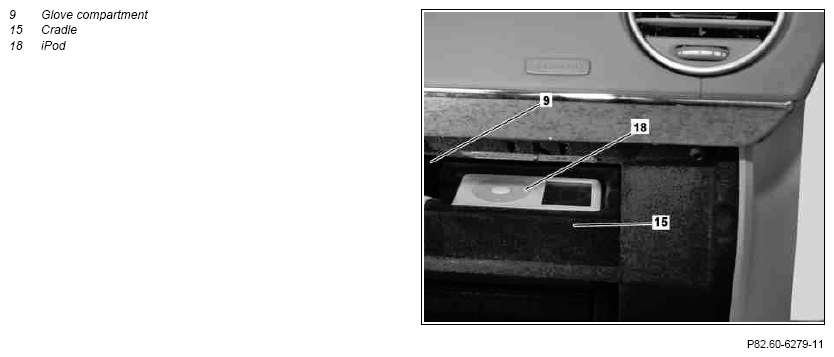

Fig 1: Identifying Glove Compartment, Cradle And iPod

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove radio		AR82.60-P-7502GZ
2	Remove cover on right under the dashboard
3	Remove paneling in right footwell		AR68.30-P-4010GZ
4	Remove glove compartment		AR68.10-P-1400GZ
	Install
5	Retrofit iPod interface wiring harness		AZ82.60-P-0001-01GZ
	Notes on avoiding damage to fiber optic cables during repair work	Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK
6	Retrofit iPod wiring harness		AZ82.60-P-0001-02GZ
7	Glue cradle (15) into glove box (9) with universal adhesive as shown.	Universal adhesive	*BR00.45-Z-1003-02A
8	Retrofit iPod interface		AZ82.60-P-0001-03GZ
9	Install remaining parts onto vehicle
10	Connect iPod coupling to iPod (18)
11	Place iPod (18) into cradle (15)
12	Carry out variant coding with the Diagnosis Assistance System	Vehicles without  code (388) Telephone "cell phone" UPCI [UHI] system	AZ54.65-P-0001-08Q
13	Carry out function check	Check iPod functions as per iPod operating instructions in vehicle.
