Retrofit InCar Hotspot - AZ82.80-P-0002GZ

MODEL 164.1/8 (except 164.195) with CODE (228) Stationary heater with CODE (386) Comfort telephony with CODE (511) Audio 50 APS with DVD changer with CODE (512) COMAND APS with DVD changer with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (460) Canada version except CODE (494) USA version except CODE (498) Japan version except CODE (830) China version

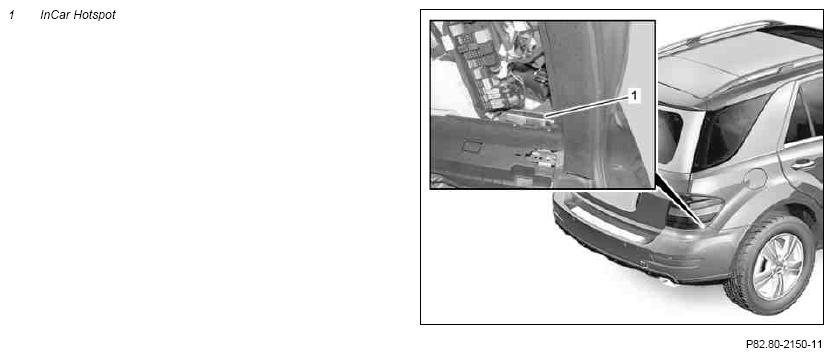

Fig 1: Identifying InCar Hotspot

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
2	Remove cover from right and left side paneling in trunk
3	Remove load compartment floor		AR68.80-P-5800GZ
4	Remove trim from spare tire well		AR68.30-P-4620GZ
5	Detach cargo area fuse and relay box	Only loosen the cargo area fuse and relay box and disconnect electrical connections as far as necessary until the back of the cargo area fuse and relay box is accessible.	AR54.15-P-1261GZ
	Install
6	Retrofit wiring harness of InCar Hotspot (1)		AZ82.80-P-0002-01GZ
7	Retrofit InCar Hotspot (1) with holder	Cordless drill/driver	AZ82.80-P-0002-02GZ
8	Secure cargo area fuse and relay box		AR54.15-P-1261GZ
9	Install trim for spare tire well		AR68.30-P-4620GZ
10	Install load compartment floor.		AR68.80-P-5800GZ
11	Install cover on right and left side paneling in trunk
12	Perform function test of InCar Hotspot (1)	See operator's manual for InCar Hotspot (1).
13	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "InCar Hotspot retrofitted in accordance with AZ82.80-P-0002GZ " under field organization texts for design group 82.
