Retrofit CD changer - AN82.64-P-0001GZ
MODEL 164 up to 30.6.07 except CODE (808) Model year 2008
Shown on model 164.1
| Remove | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | With Media Oriented System Transport (MOST) | AH82.60-P-0001-05AK | |
| 1 | Remove radio | AR82.60-P-7502GZ | |

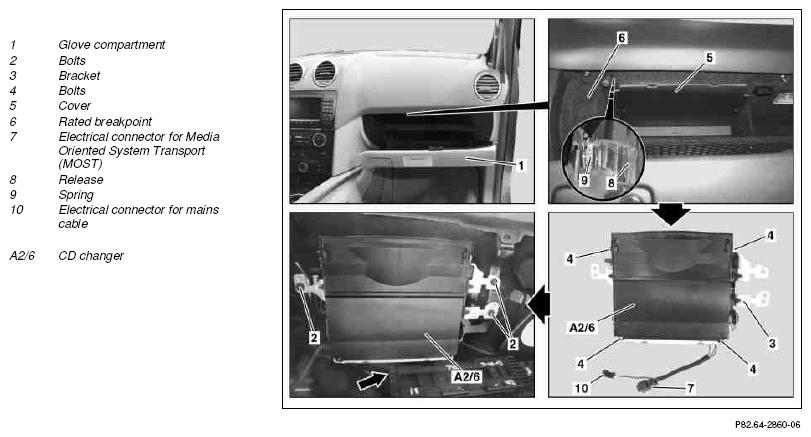

| 2 | Remove glove box (1) | AR68.10-P-1400GZ | |
| 3 | Remove paneling in right footwell | AR68.30-P-4010GZ | |
| 4 | Unclip cover (5) | ||
| Fig 2 | |||
| 5 | Expose predetermined fracture point (6) for CD changer release button | ||
| Install | |||
| 6 | Retrofit wiring harness of fiber optic cable for the Media Oriented System Transport (MOST) | AN82.61-P-0001-06GZ | |
| Wiring diagram for MOST bus | PE82.00-P-2710MAA | ||
| 7 | Mount CD changer (A2/6) to bracket (3) with screws (4) | ||
| 8 | Fasten bracket (3) and CD changer (A2/6) to dashboard support with screws (2) | ||
| 9 | Insert electrical connector for Media Oriented System Transport (MOST) (7) and electrical connector for mains cable (10) of CD changer (A2/6) into Instrument panel wiring harness (arrow) | ||
| 10 | Attach release mechanism (8) to glove compartment | ||
| 11 | Install remaining parts | ||
| 12 | Connect Star Diagnosis | ||
| 13 | Carry out variant coding with the Diagnosis Assistance System by means of Software Calibration Number (SCN) | ||
| 14 | Enter special equipment in the vehicle data card and in the vehicle's online data card | ||
| 15 | Disconnect Star Diagnosis | ||
| 16 | Conduct function test of CD changer (A2/6) | ||
| 17 | Document retrofitted equipment using vehicle documentation (VeDoc) |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| KG99 (see EPC) | Scope of delivery of CD changer | 1 |
