Retrofit Audio 50 APS navigation system - AN82.61-P-0004GZ

MODEL 164

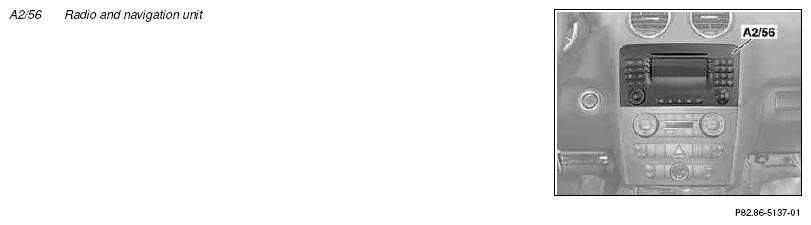

Fig 1: Identifying Radio And Navigation Unit

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove radio	Dispose of radio.	AR82.60-P-7502GZ
2	Remove cover beneath dashboard (left)		AR68.10-P-1500GZ
3	Remove air inlet duct under the hood		AR83.25-P-1407GZ
	Install
4	Retrofit antenna		AN82.62-P-0001-02GZ
			*BR00.45-Z-1004-01A
5	Install Audio 50 APS radio		AR82.60-P-7502GZ
6	Install cover below instrument panel (left)		AR68.10-P-1500GZ
7	Install air inlet duct under engine hood		AR83.25-P-1407GZ
8	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
9	Enter special equipment in the vehicle data card and in the vehicle's online data card	Enter code (525) MB Audio 50 APS radio. ↓
		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
10	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
11	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "MB Audio 50 APS radio retrofitted as per AN82.61-P-0004GZ " note under field organization texts to design group 82.
12	Perform function test

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1004-01A	Sealant	A 003 989 01 71

PARTS ORDERING NOTES

Part no.	Designation	Quantity
KG99 (see EPC)	Audio 50 APS navigation system	1
000 986 06 50	Primer stick	1
