Remove/install air inlet duct below engine hood - AR83.25-P-1407GZ

MODEL 164

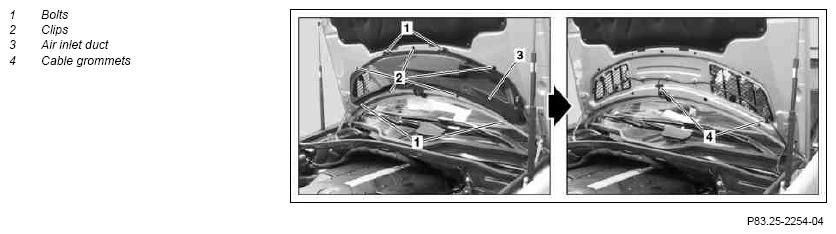

Fig 1: Identifying Air Inlet Duct Below Engine Hood Remove/Install Component

Courtesy of MERCEDES-BENZ USA

	Removing
1	Open engine hood and move to upright position		AR88.40-P-1000GZ
2	Remove bolts (1)
3	Unclip clips (2)	Long wedge	Figure
4	Remove air inlet duct (3)	Cable grommets (4) can fall out when the air inlet duct (3) is being removed.
	Install
5.1	Insert cable grommets (4)	If they have fallen out during removal.
6	Clip in air inlet duct (3)
7	Screw in bolts (1).
8	Close engine hood		AR88.40-P-1000GZ

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
