Remove/install antenna amplifier module - AR82.62-P-8300GZ

MODEL 164 roof antenna module

Shown on model 164.1

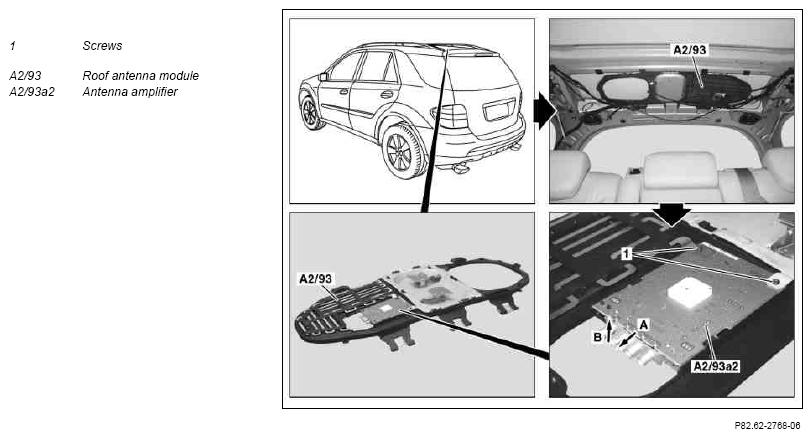

Fig 1: Identifying Antenna Amplifier Module Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove headliner		AR68.30-P-4300GZ
2	Remove roof antenna module (A2/93)		AR82.62-P-8979GZ
3	Remove bolts (1)
4	Release antenna amplifier module (A2/93a2) toward side (arrow A) and remove upward (arrow B).	Do not damage or contaminate printed circuit board.
5	Install in the reverse order
