Remove/install roof antenna module - AR82.62-P-8979GZ

MODEL 164

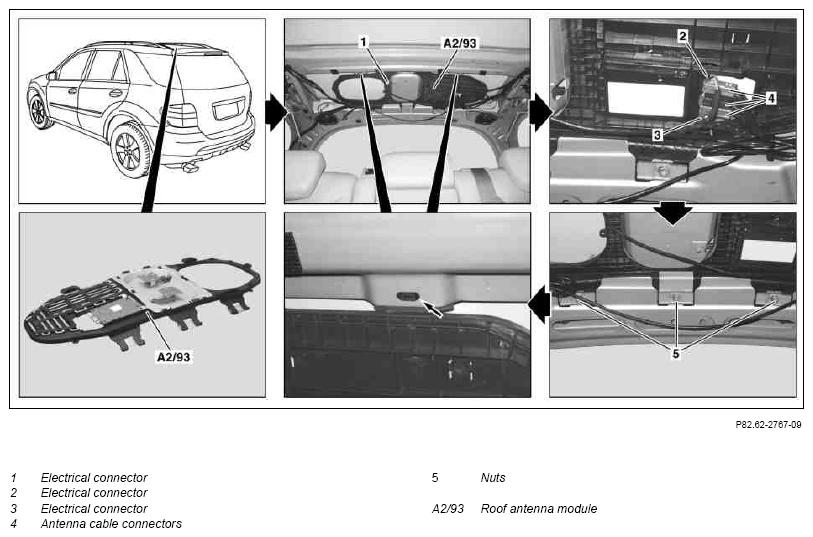

Fig 1: Identifying Roof Antenna Module Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1	Remove headliner		AR68.30-P-4300GZ
2	Disconnect electrical connector (1, 2, 3)	Unclip cable tie if present.
3	Disconnect antenna cable (4) connectors	Unclip cable tie if present.
4	Unscrew nuts (5).
5	Release roof antenna module (A2/93) at the two tabs (arrow) and remove	Long wedge	Figure
6	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
