Low-beams actuation, function - GF82.10-P-3002GXA

MODEL 164.1/8 as of 9.7.07 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination up to Model Year 2008

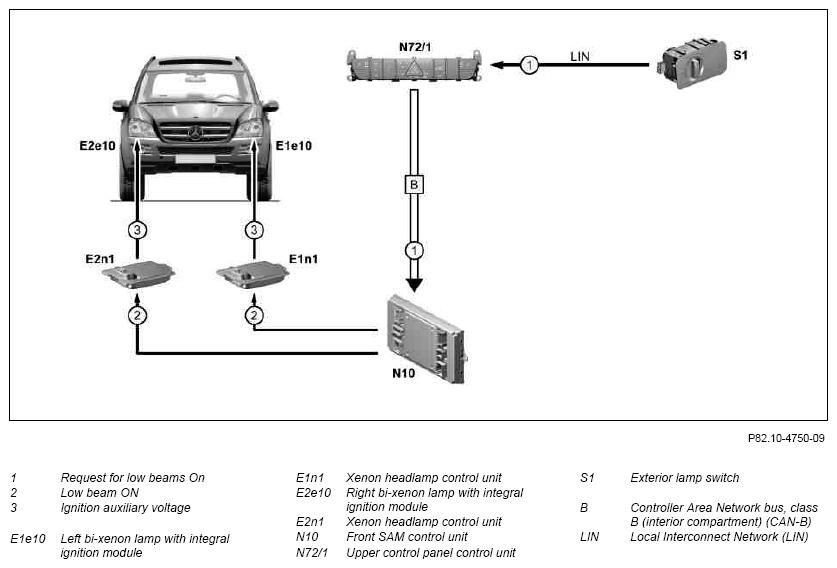

Fig 1: Low-Beams Actuation Communication Diagram

Courtesy of MERCEDES-BENZ USA

Shown on model 164.8

Function requirements

C. 30 ON
Rotary light switch in "Low beam" position
Combination switch (S4) in center position (low beam switch position)

Function

The upper control panel control unit reads in the status of the rotary light switch via LIN and transmits this to the front SAM control unit via CAN-B.

The front SAM control unit in response actuates the xenon headlamp control units accordingly. The xenon headlamp control units generate an ignition auxiliary voltage and pass this on to the bi-xenon lamps with integrated ignition module.

The bi-xenon lamps with integrated ignition module generate the ignition voltage required for igniting the xenon bulbs.

When successfully ignited, the bi-xenon lamps with integrated ignition module are supplied with operating voltage by the xenon headlamp control units.

Xenon light control unit, component description	E1n1, E2n1	GF82.10-P-2119GZ
Front SAM control unit, component description	N10	GF54.21-P-7010GZ
Upper control panel control unit, component description	N72/1 For code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS), without code (430) Offroad package	GF54.21-P-6040GZ
	For code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) and code (430) Offroad package without	GF54.21-P-6040GZE
	For with code (489) AIRmatic (air suspension with level adjustment and adaptive damping system ADS) and code (430) Offroad package	GF54.21-P-6040GZU
	For model 164.8 with and with code (489) AIRmatic (air suspension without level adjustment and adaptive damping system ADS)	GF54.21-P-6040GZA
Rotary light switch, component description	S1	GF82.10-P-4106GZ
Combination switch, component description	S4	GF82.30-P-5000GZ
